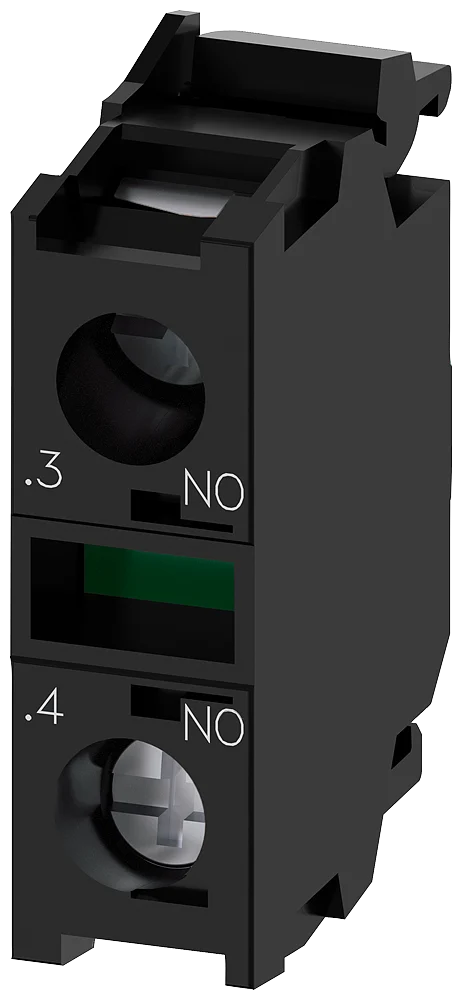

Siemens Auxiliary Contact Block – 3SU14001AA101BA0

Contact module with one contact element, one normally open, screw terminal, for front plate mounting. Minimum order quantity is five or a multiple of this. The contact module SIRIUS ACT is intended for switching power circuits.

Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of push buttons and signaling devices with global product approvals in three modern design lines of rugged genuine metal and high-grade plastic.

An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.

Thanks to the high degree of protection throughout, these rugged devices are suitable for use in industry and outdoors. They can even be cleaned with a high-pressure jet. Their reliable operation is not interfered by dust, oils, or caustic solutions.

In addition to standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. This reduces wiring time and effort, minimizes sources of errors, and provides more flexibility.

The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures, and labels. Extensive documentation such as manual, 3D data, terminal diagram is available.

• Various versions are available with different switching functions, types of connection and installation, single-pole and double-pole.

SIRIUS ACT is performance in action for control and signaling. It is simple to mount, robustly strong, and simply perfect.

Specifications

Number of contacts as change-over contact : 0
Number of contacts as normally open contact : 1
Number of contacts as normally closed contact : 0
Number of fault-signal switches : 0
Rated operation current Ie at AC-15, 230 V (A) : 6
Electrical connection : Screw connection
Mounting method : Front fastening
Lamp holder : Other
