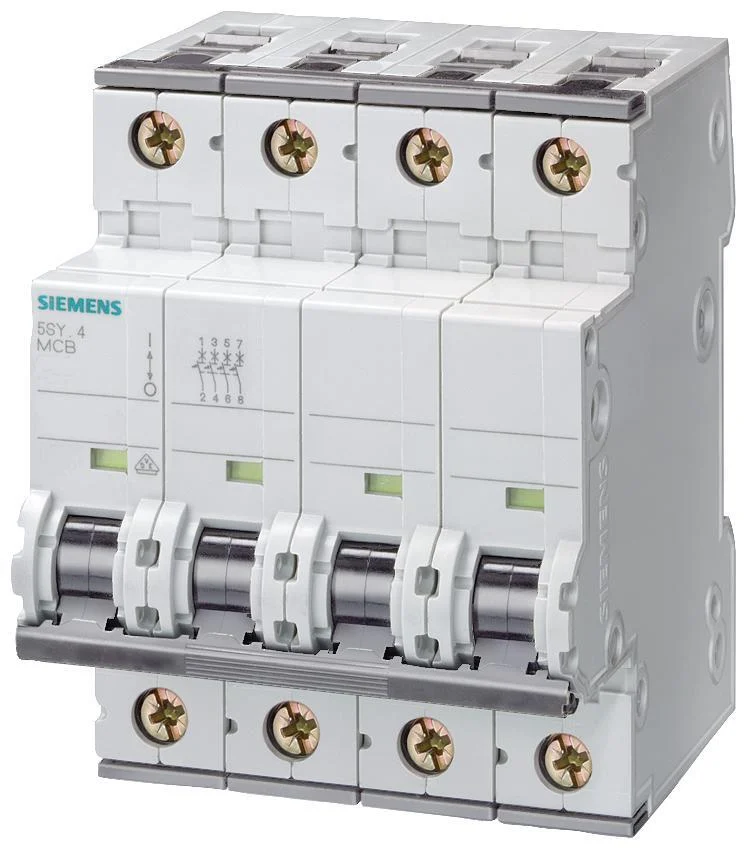

Siemens 5SY4 Circuit Breaker – 5SY46166

The Siemens 5SY4 installation circuit breaker features a slider mounting system. This allows the circuit breaker to be installed and removed from DIN rails without tools. The tighter magnetic trip curves of the Siemens circuit breaker ensure better selection of protections. Siemens 5SY4 circuit breakers are available in different variants.

Specifications

Built-in depth (mm) : 70
Release characteristic : B
Number of poles (total) : 4
Number of protected poles : 3
Rated current (A) : 16
Rated voltage (V) : 400
Rated insulation voltage Ui (V) : 440
Rated impulse withstand voltage Uimp (kV) : 4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V (kA) : 10
Voltage-type : AC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V (kA) : 10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V (kA) : 20
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V (kA) : 20
Frequency (Hz) : 50 Hz to 50 Hz
Current limiting class : 3
Flush-mounted installation : No
Concurrently switching neutral conductor : Yes
Pollution degree : 3
Additional equipment possible : Yes
Width in number of modular spacings : 4
Ambient temperature during operating (°C) : -40 °C to 70 °C
Connectable conductor cross section multi-wired (mm²) : 0.75 mm² to 35 mm²
Connectable conductor cross section solid-core (mm²) : 0.75 mm² to 35 mm²
Explosion-proof : No
