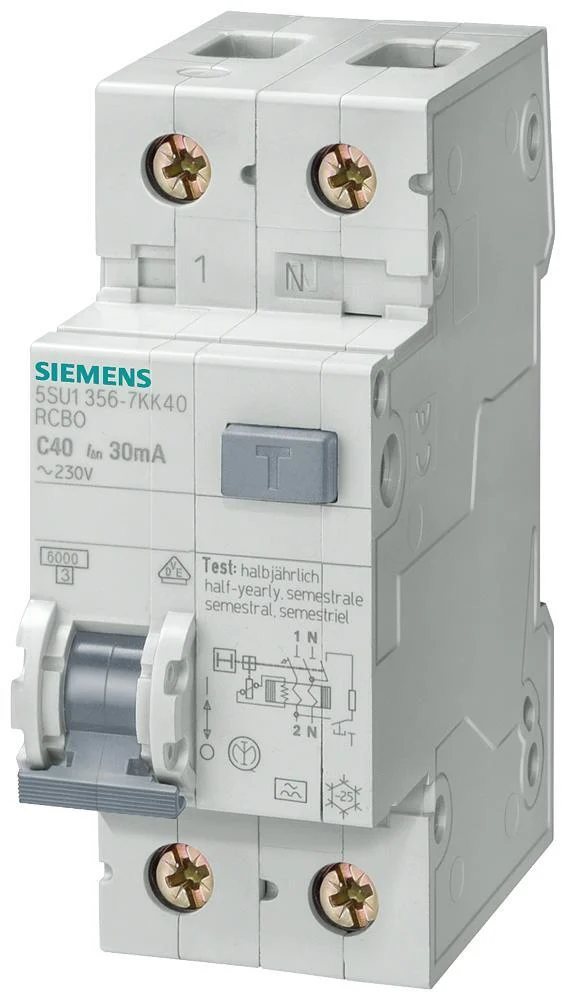

Rcbos are a combination of an rccb and a miniature circuit breaker in a compact design for personnel, fire and line protection. For personnel protection and fire protection, the residual current part of the type ac trips in the event of sinusoidal ac residual currents, type a also trips in the event of pulsating DC residual currents. In addition, rcbos type f also detect residual currents with mixed frequencies up to 1 khz. Rcbos with a rated residual current of maximum 30 ma are used for personnel, material and fire protection, as well as for protection against direct contact.
Specifications
Number of poles (total) : 2
Number of protected poles : 1
Rated voltage (V) : 230
Rated insulation voltage Ui (V) : 264
Rated impulse withstand voltage Uimp (kV) : 4
Rated current (A) : 10
Rated fault current (A) : 0.03
Leakage current type : A
Current limiting class : 3
Rated short-circuit breaking capacity according to EN 61009 (kA) : 6
Rated short-circuit breaking capacity according to IEC 60947-2 (kA) : 15
Rated short-circuit breaking capacity Icn according to EN 61009-1 (kA) : 6
Disconnection characteristic : Undelayed
Surge current capacity (kA) : 1
Voltage-type : AC
Frequency : 50 Hz
Release characteristic : B
Concurrently switching neutral conductor : Yes
With interlocking device : Yes
Over voltage category : 2
Pollution degree : 2
Width in number of modular spacings : 2
Built-in depth (mm) : 70
Flush-mounted installation : Yes
Anti-nuisance tripping version : Yes
Connectable conductor cross section solid-core (mm²) : 0.75 mm² to 35 mm²
Connectable conductor cross section multi-wired (mm²) : 0.75 mm² to 35 mm²
