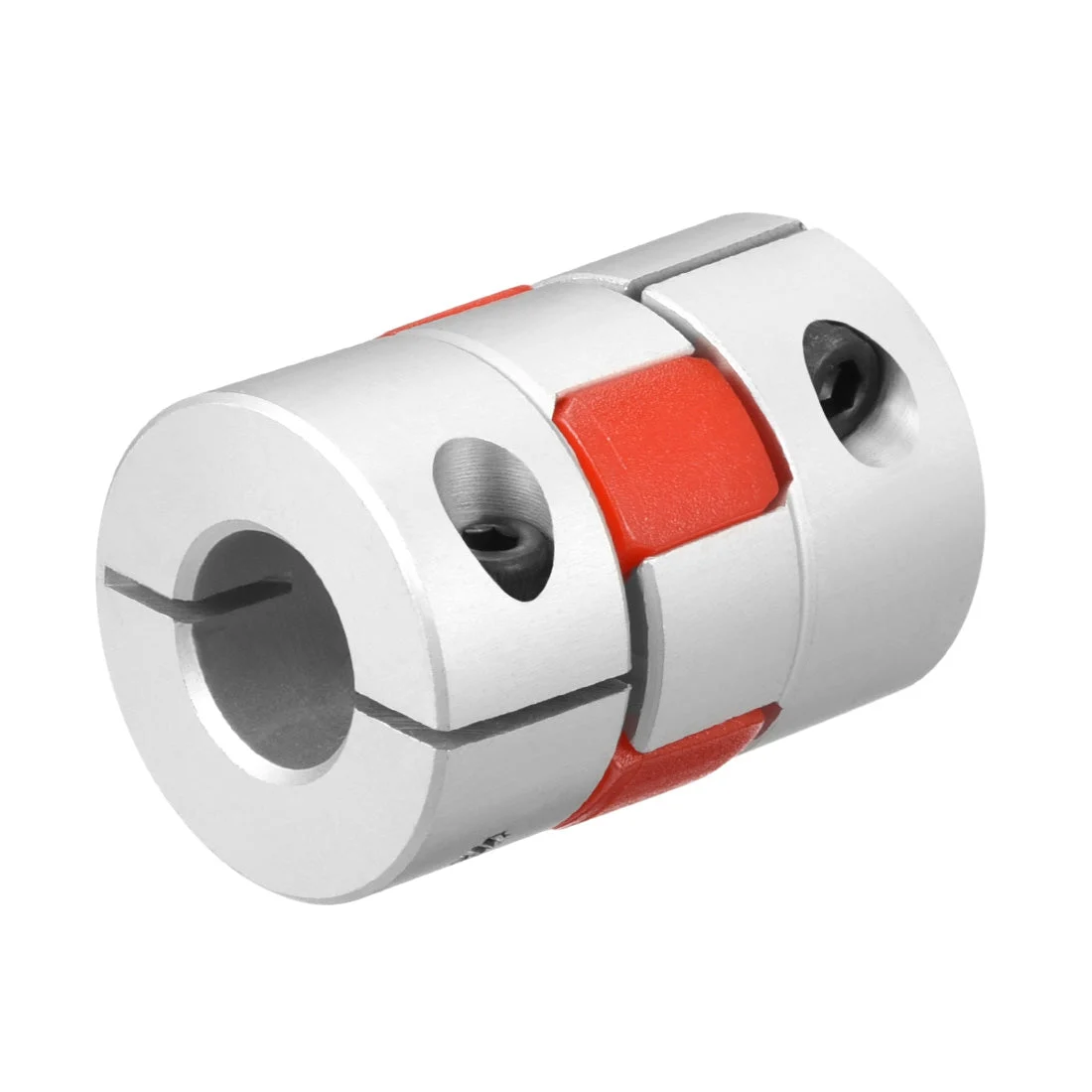

Shaft Coupling 12mm to 12mm Bore L35xD25 Flexible Joint for Servo Stepped Motor

About this item

• General purpose power transmission coupling, also used in motion control applications and rotational power transmissions, is good replacement for your needs.
• It is designed to transmit torque while damping system vibrations and accommodating misalignment to protect other components from damage.
• Jaw couplings have three parts: two metallic hubs and an elastomer insert called an element, but commonly called “”.
• Main Color: Silver Tone; Shaft Usage: 12mm to 12mm/0.47 inch to 0.47 inchTotal Size: 35 x 25mm / 1.38 inch x 0.98 inch (L*D); Feature: Set screwsThread Size: M3
• Wear resistant ,high hardness and excellent response.Super elastic torque can absorb vibration, appropriate a large torque transmission.

Mainly used for servo motors, spindle, step motor and so on.
Wear resistant ,high hardness and excellent response.
Super elastic torque can absorb vibration, appropriate a large torque transmission.
Specification:
Color: Silver Tone
Net Weight: 35g
Material: Aluminum Alloy
Fixed Type: Clamp
Thread Size: M3
Connection Diameter: 12mm to 12mm / 0.47 to 0.47 inch
Total Length: 35mm /1.38 inch
Outside Diameter : 25mm/ 0.98 inch
Package List:
1 x Flexible Shaft Coupler
