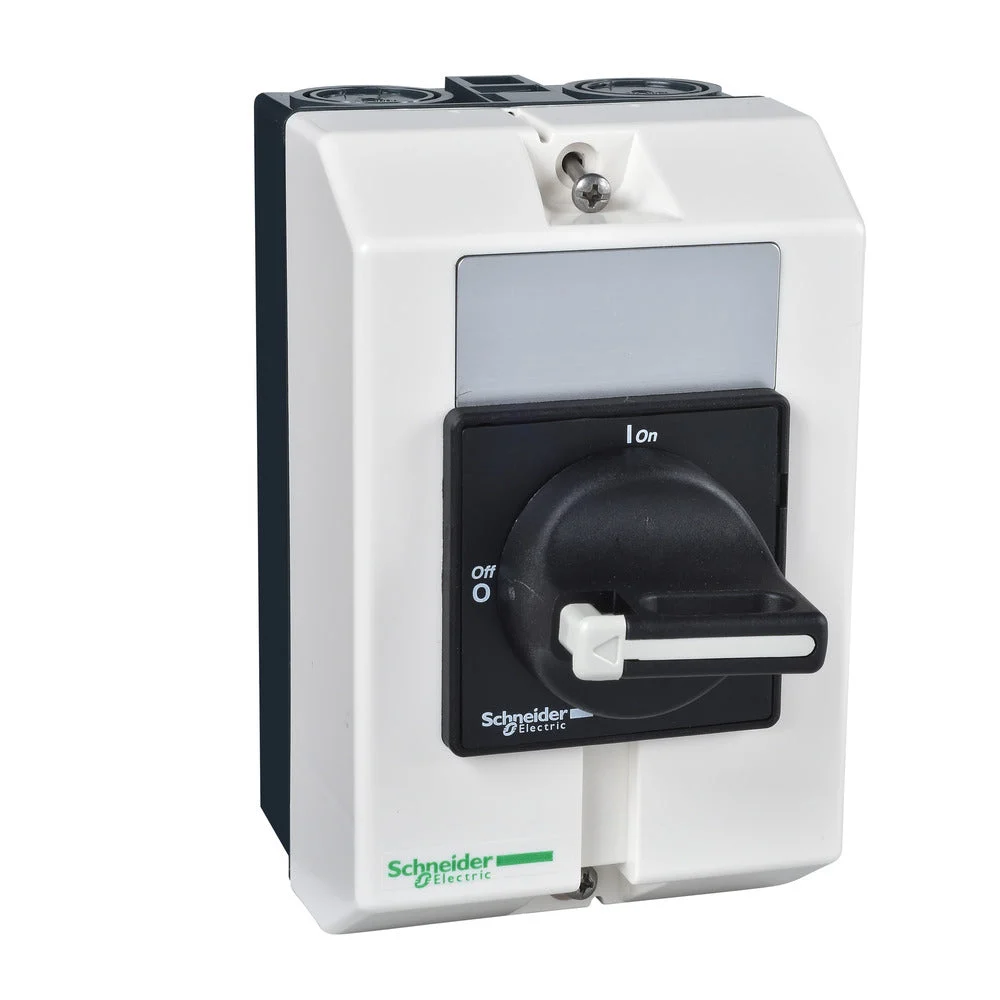

Tesys enclosed starter with switch disconnector, 3 poles, for main switching in motor applications up to 5.5kw@400v ac-2. Enclosure providing ip65 protection, fitted with a black rotary handle and black front plate, pad lockable (padlocks not included). it includes a 3-pole vario switch body v01 with 2 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. Ip degree of protection ip65. Mercury free.
Specifications
Version as main switch : Yes
Version as maintenance-/service switch : Yes
Version as safety switch : No
Version as emergency stop installation : No
Version as reversing switch : No
Number of switches : 1
Max. rated operation voltage Ue AC (V) : 690
Rated operating voltage (V) : 690 V to 690 V
Rated permanent current Iu (A) : 16
Rated permanent current at AC-23, 400 V (A) : 11
Rated permanent current at AC-21, 400 V (A) : 20
Rated operation power at AC-3, 400 V (kW) : 4
Rated short-time withstand current lcw (kA) : 0.3
Rated operation power at AC-23, 400 V (kW) : 5.5
Conditioned rated short-circuit current Iq (kA) : 10
Number of poles : 3
Number of auxiliary contacts as normally closed contact : 0
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
Motor drive optional : No
Motor drive integrated : No
Voltage release optional : No
Device construction : Complete device in housing
Suitable for floor mounting : Yes
Suitable for front mounting 4-hole : No
Suitable for front mounting center : No
Suitable for distribution board installation : No
Suitable for intermediate mounting : No
Color control element : Black
Type of control element : Short thumb-grip
Interlockable : Yes
Type of electrical connection of main circuit : Screw connection
Degree of protection (IP), front side : IP65
