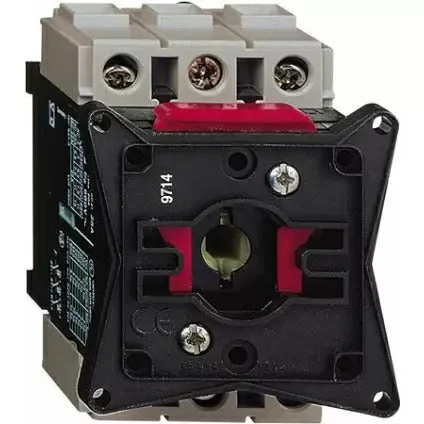

Schneider Electric Vario load breaker, 1 switch, max. Rated operating voltage Ue at A 690V, operating voltage (measuring voltage) 0 – 690V, rated continuous current Iu 25A, rated continuous current, AC-23, 400 V 14.5A, rated continuous current, AC-21, 400 V 25A, rated power at AC-3, 400 V 5.5kW.
Specifications
Version as main switch : No
Version as maintenance-/service switch : No
Version as safety switch : No
Version as emergency stop installation : No
Version as reversing switch : No
Number of switches : 1
Max. rated operation voltage Ue AC (V) : 690
Rated operating voltage (V) : 690 V to 690 V
Rated permanent current Iu (A) : 25
Rated permanent current at AC-23, 400 V (A) : 14.5
Rated permanent current at AC-21, 400 V (A) : 25
Rated operation power at AC-3, 400 V (kW) : 5.5
Rated short-time withstand current lcw (kA) : 0.3
Rated operation power at AC-23, 400 V (kW) : 7.5
Conditioned rated short-circuit current Iq (kA) : 10
Number of poles : 3
Number of auxiliary contacts as normally closed contact : 0
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
Motor drive optional : No
Motor drive integrated : No
Voltage release optional : No
Device construction : Built-in device fixed built-in technique
Suitable for floor mounting : No
Suitable for front mounting 4-hole : Yes
Suitable for front mounting center : Yes
Suitable for distribution board installation : No
Suitable for intermediate mounting : No
Interlockable : No
Type of electrical connection of main circuit : Screw connection
Degree of protection (IP), front side : IP20
