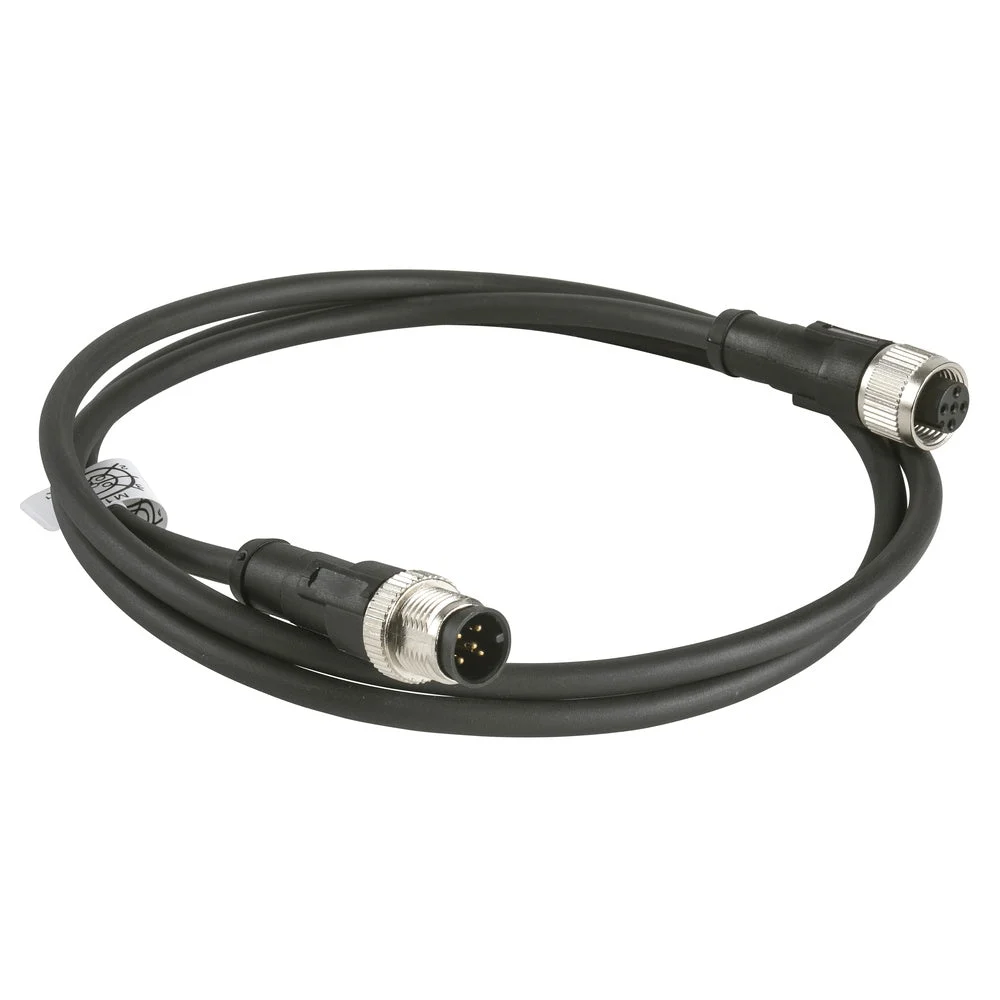

Schneider Electric Sensor/Actor Cable With Connector – XZCR1511064D1

Schneider Electric sensor/actor cable with connector, cable entry position field side straight, cable entry position box side straight, cable length 1m, cable jacket other, 5 poles, cable jacket polyurethane (PU), nom. (measuring) current In 4A, degree of protection (IP) other, resistance 5000mOhm.

Specifications

Number of poles : 5
Type of electrical connection, field-sided : M12
Type of plug-in contact, field sided : Male (plug)
Positioning cable feed, field-sided : Straight
Type of electrical connection, box-sided : M12
Type of plug-in contact, box-sided : Female (bus)
Positioning cable feed, box-sided : Straight
Cable length (m) : 1
Material of cable sheath : Polyurethane (PUR)
Halogen free : No
Color cable sheath : Other
With LED indication : No
Screened : No
Cable type : Multi-core
Vulcanize : No
Material contact body : Other
Material of contact surface : Other
Permitted cable outer temperature after assembling without vibration (°C) : -35 °C to 90 °C
Permitted cable outer temperature during assembling/handling (°C) : -5 °C to 90 °C
Rated current In (A) : 4
Rated voltage (V) : 30
Continuity resistor (mOhm) : 5000
Degree of protection (IP) : Other
