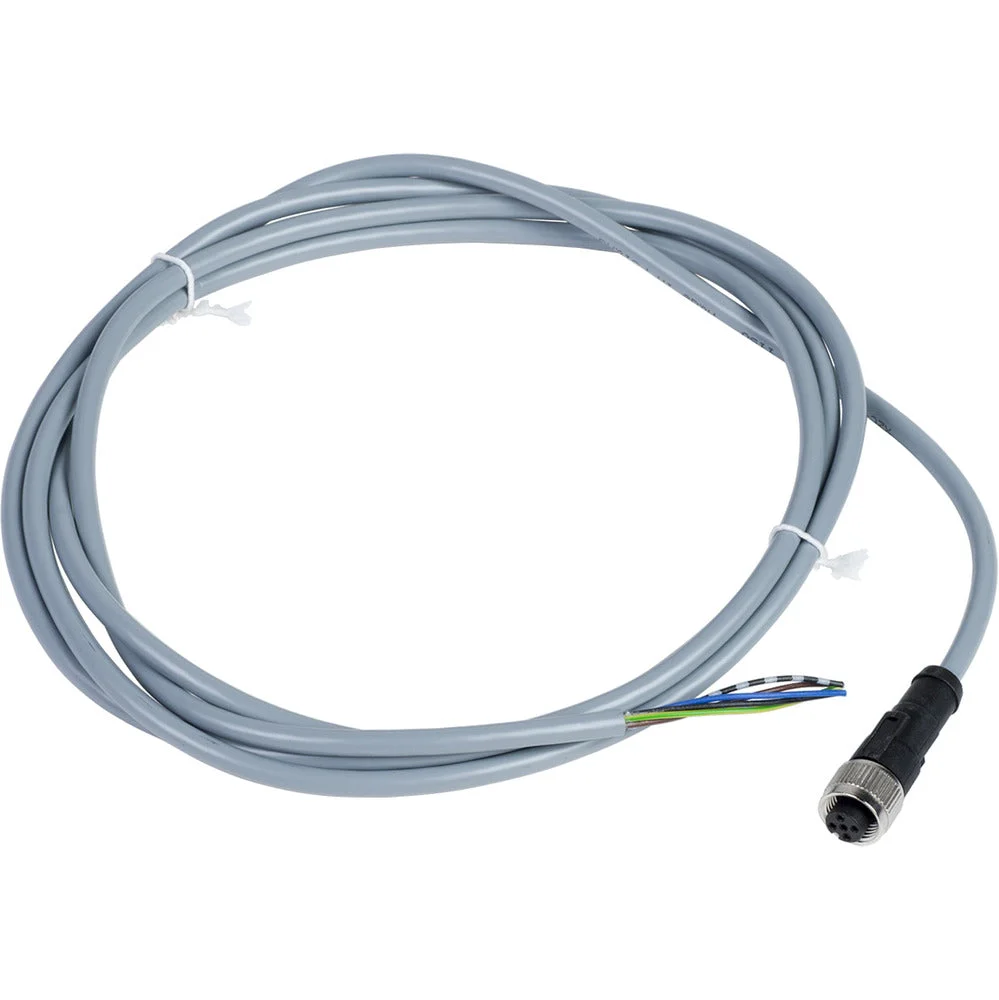

This product belongs to the XZ range, offering a variety of cordsets and connectors. The cable consists of 5 wires and features a 5-pin M12 straight female connector with a metal collar. Made of polyvinyl chloride, it is suitable for general use. The rated operational voltage stands at 60V/AC or 75V/DC and it has a nominal current of 3A. The contact resistance amounts to 5000µOhm, while the minimum insulating resistance is 1GΩ.
The cable is dustproof, resistant to water jets (IP65), and can be temporarily immersed in water (IP67). The cable measures 2m in length and 4.6mm in diameter. It is composed of 5 wires, each of which has a section of 0.25 mm². The cable is black and weighs 0.1kg.
This product is suitable for general use in machines with low environmental and mechanical stress, operating between -25°C to +80°C if the cable remains static.
The cable is cULus-certified and is compatible with a 5-pin M12 male connector. The XZ range offers a variety of cordsets, connectors, and connection boxes designed for an easy connection process and quick reference identification.
Specifications
Number of poles : 5
Type of electrical connection, field-sided : M12
Type of plug-in contact, field sided : Female (bus)
Positioning cable feed, field-sided : Straight
Type of electrical connection, box-sided : Other
Type of plug-in contact, box-sided : Female (bus)
Positioning cable feed, box-sided : Other
Cable length (m) : 2
Material of cable sheath : Polyvinyl chloride (PVC)
Halogen free : No
Color cable sheath : Black
With LED indication : No
Screened : No
Cable type : Multi-core
Vulcanize : No
Material contact body : Other
Material of contact surface : Other
Permitted cable outer temperature after assembling without vibration (°C) : -25 °C to 80 °C
Permitted cable outer temperature during assembling/handling (°C) : -25 °C to 80 °C
Rated current In (A) : 3
Rated voltage (V) : 250
Continuity resistor (mOhm) : 5
Degree of protection (IP) : Other
