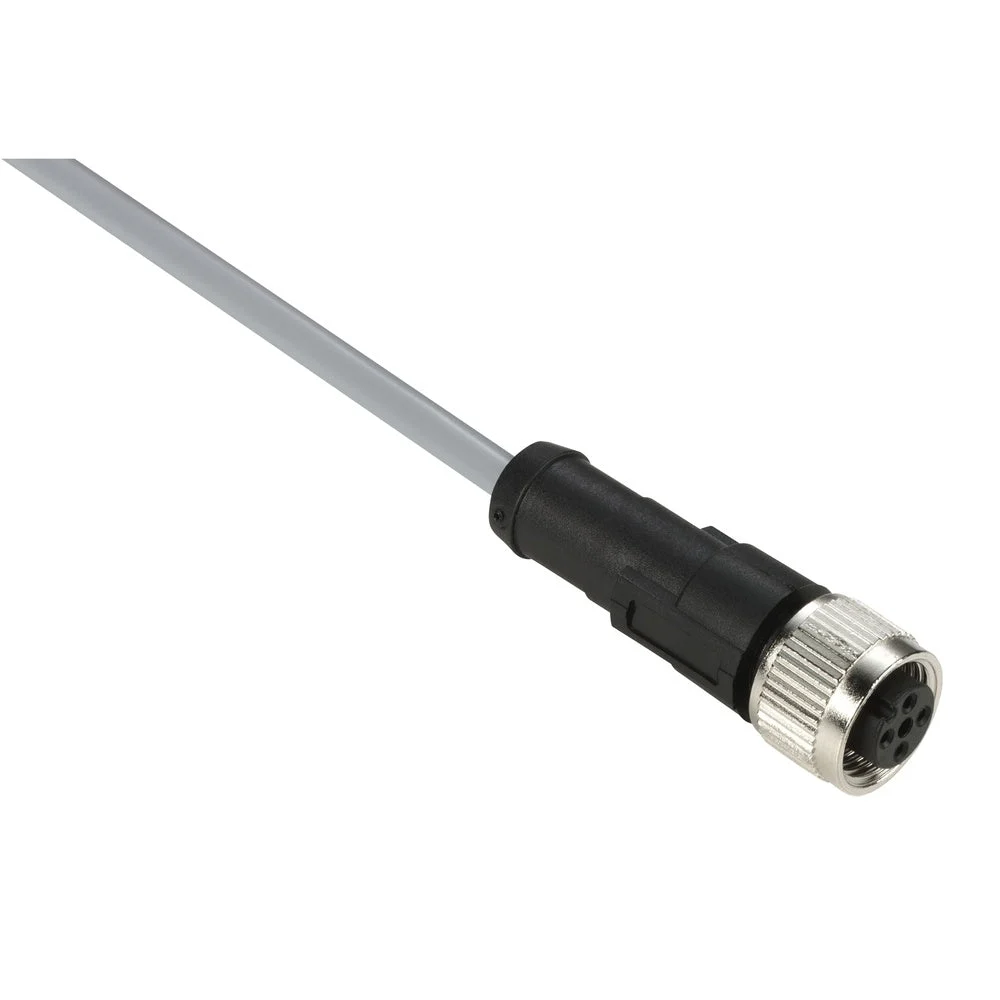

This product belongs to the XZ range, which consists of cordsets and connectors. This cable comprises 5 wires and features a 5-pin M12 straight female connector with a metal collar. It is constructed with polyvinyl chloride for general use. The rated operational voltage is 60V/AC or 75V/DC, and the nominal current is 3A. The contact resistance is 5000 microOhm, and the minimum insulating resistance is 1 GigaOhm.
The cable is dustproof, resistant to water jets (IP65), and can be temporarily submerged in water (IP67). The cable has a length of 10m and a diameter of 4.6mm. It consists of 5 wires, each of which has a section of 0.25 mm². The color of the cable is black and it weighs 0.36kg.
It is intended for general use such as machines with low environmental and mechanical stresses, functioning optimally between -25°C to +80°C if the cable remains static. This cable meets cULus certification standards. It is compatible with a 5-pin M12 male connector.
The XZ range offers a wide variety of cordsets, connectors, and connection boxes designed for a straightforward connection process and swift reference identification.
Specifications
Number of poles : 5
Type of electrical connection, field-sided : M12
Type of plug-in contact, field sided : Female (bus)
Positioning cable feed, field-sided : Straight
Type of electrical connection, box-sided : Other
Type of plug-in contact, box-sided : Female (bus)
Positioning cable feed, box-sided : Other
Cable length (m) : 10
Material of cable sheath : Polyvinyl chloride (PVC)
Halogen free : No
Color cable sheath : Black
With LED indication : No
Screened : No
Cable type : Multi-core
Vulcanize : No
Material contact body : Other
Material of contact surface : Other
Permitted cable outer temperature after assembling without vibration (°C) : -25 °C to 80 °C
Permitted cable outer temperature during assembling/handling (°C) : -25 °C to 80 °C
Rated current In (A) : 3
Rated voltage (V) : 250
Continuity resistor (mOhm) : 5
Degree of protection (IP) : Other
