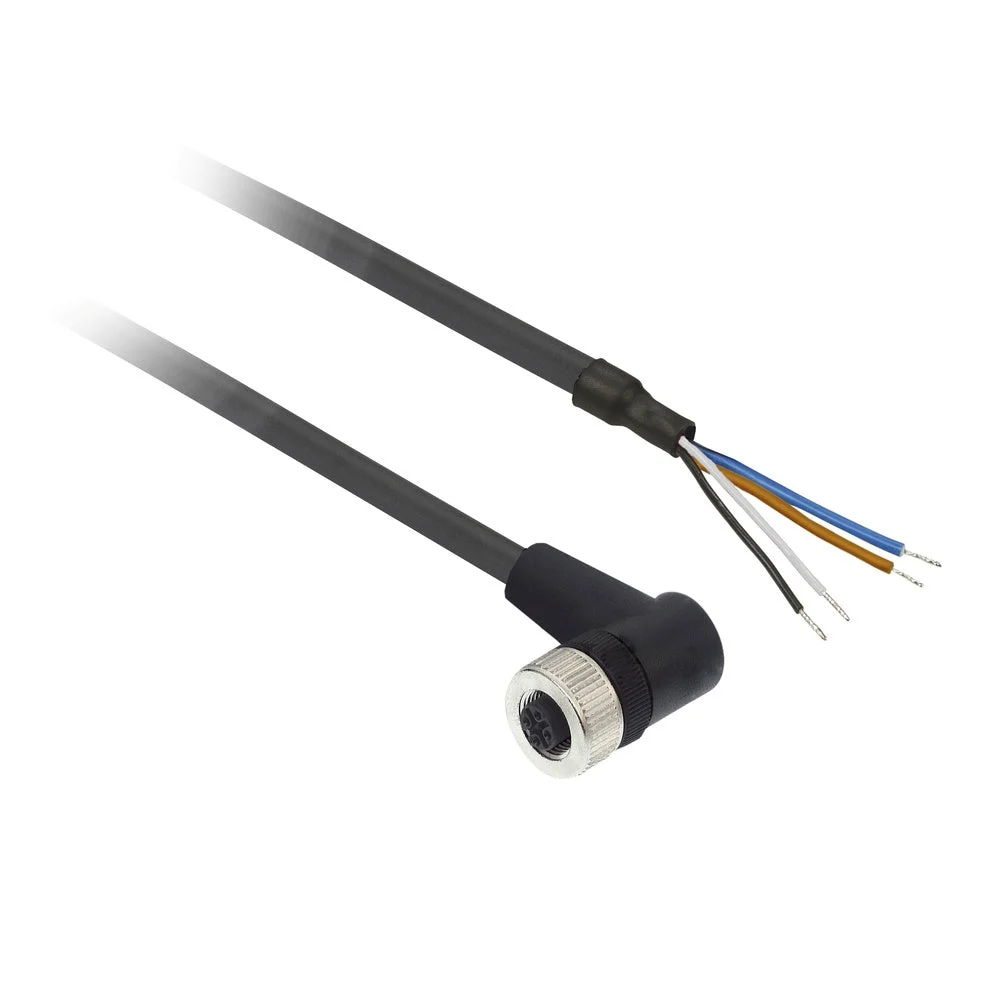

Schneider Electric Sensor/Actor Cable With Connector – XZCP1241L15

Schneider Electric sensor/actor cable with connector, cable entry position field side oblique (angle), cable entry position box side other, cable length 15m, cable jacket black, 4 poles, cable jacket polyurethane (PU), nom. (measuring) current In 4A, degree of protection (IP) other, passage resistance 5mOhm.

Specifications

Number of poles : 4
Type of electrical connection, field-sided : M12
Type of plug-in contact, field sided : Female (bus)
Positioning cable feed, field-sided : Angled
Type of electrical connection, box-sided : Other
Type of plug-in contact, box-sided : Female (bus)
Positioning cable feed, box-sided : Other
Cable length (m) : 15
Material of cable sheath : Polyurethane (PUR)
Halogen free : No
Color cable sheath : Black
With LED indication : No
Screened : No
Cable type : Multi-core
Vulcanize : No
Material contact body : Other
Material of contact surface : Other
Permitted cable outer temperature after assembling without vibration (°C) : -40 °C to 80 °C
Permitted cable outer temperature during assembling/handling (°C) : -5 °C to 80 °C
Rated current In (A) : 4
Rated voltage (V) : 250
Continuity resistor (mOhm) : 5
Degree of protection (IP) : Other
