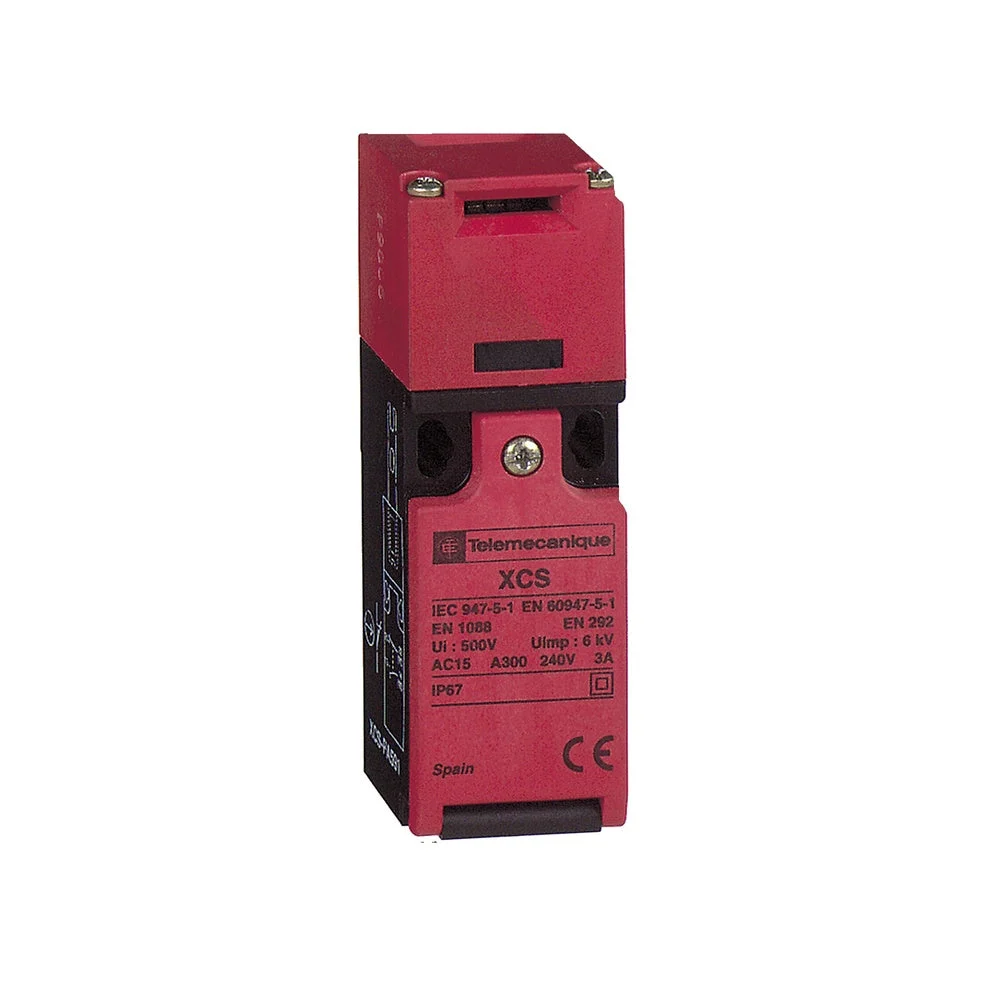

Schneider Electric Preventa Limit Switch With Separate Control Element – XCSPA792

Schneider Electric Preventa limit switch m separate bed element, forcibly opening, suitable for safety function, 2 break contacts, degree of protection (IP) IP67K, coating housing other, execution electrical connection cable entry metric, degree of protection (NEMA) other.

Specifications

Suitable for safety functions : Yes
Width sensor (mm) : 30
Height of sensor (mm) : 94
Length of sensor (mm) : 30
Forced opening : Yes
Number of contacts as normally closed contact : 2
Type of switching contact : Slow-action switch
Rated operation current Ie at AC-15, 125 V (A) : 6
Rated operation current Ie at AC-15, 230 V (A) : 3
Rated operation current Ie at DC-13, 125 V (A) : 0.55
Rated operation current Ie at DC-13, 230 V (A) : 0.27
Construction type housing : Other
Material : Plastic
Coating housing : Other
Type of interface : None
Type of interface for safety communication : None
Electrical connection : Cable entry metrical
Explosion safety gas : None
Explosion safety dust : None
Ambient temperature during operating (°C) : -25 °C to 70 °C
Degree of protection (IP) : IP67K
