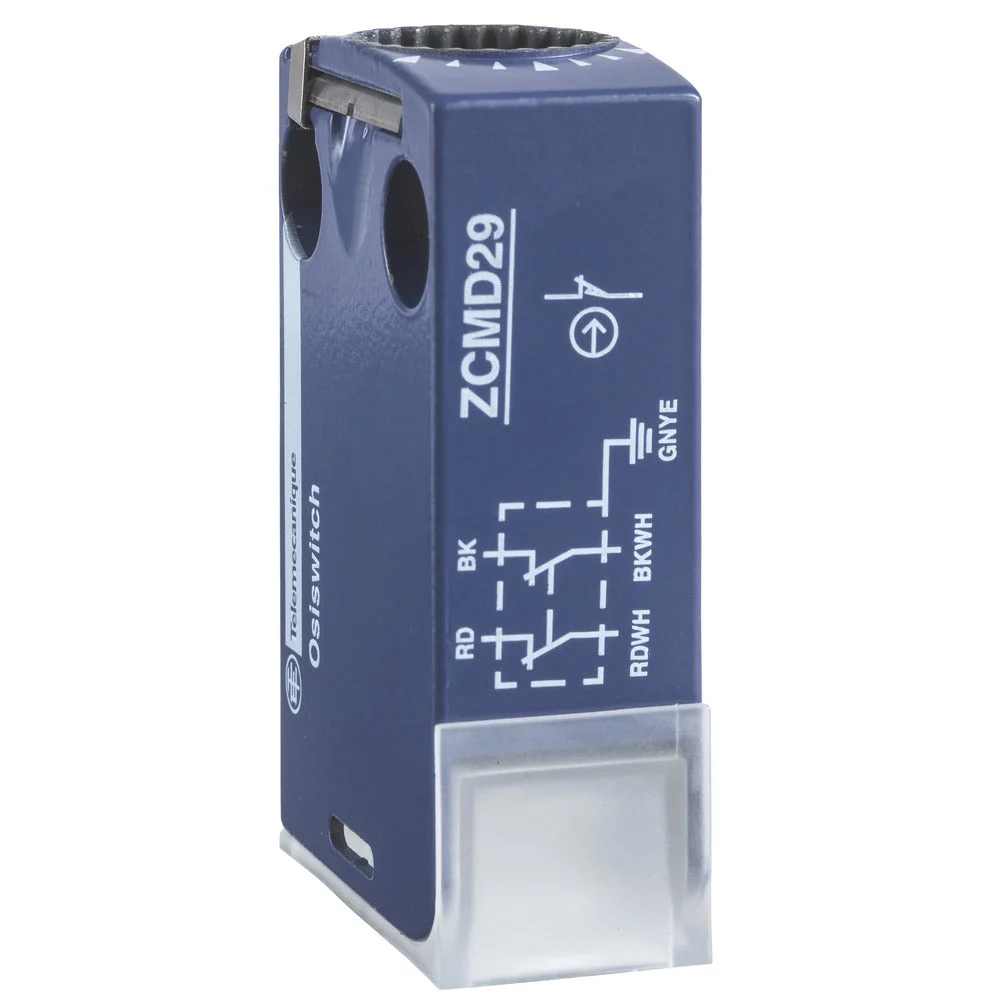

Schneider Electric Osiswitch Universal limit switch, (WxH) 40x65mm, housing metal, degree of protection (IP) IP66, switching function torque switching, type of electrical connection plug connection M12, 1 changeover contacts, housing according to standard other, housing form cube.
Specifications
Width sensor (mm) : 52
Height of sensor (mm) : 74
Length of sensor (mm) : 16
Rated operation current Ie at AC-15, 230 V (A) : 1.5
Rated operation current Ie at DC-13, 230 V (A) : 0.1
Switching function : Quick-break switch
Number of contacts as change-over contact : 1
Type of interface : None
Type of interface for safety communication : None
Construction type housing : Cuboid
Material : Metal
Coating housing : Other
Type of control element : None
Alignment of the control element : Other
Electrical connection : Connector M12
Explosion safety gas : None
Explosion safety dust : None
Ambient temperature during operating (°C) : -25 °C to 70 °C
Degree of protection (IP) : IP66
