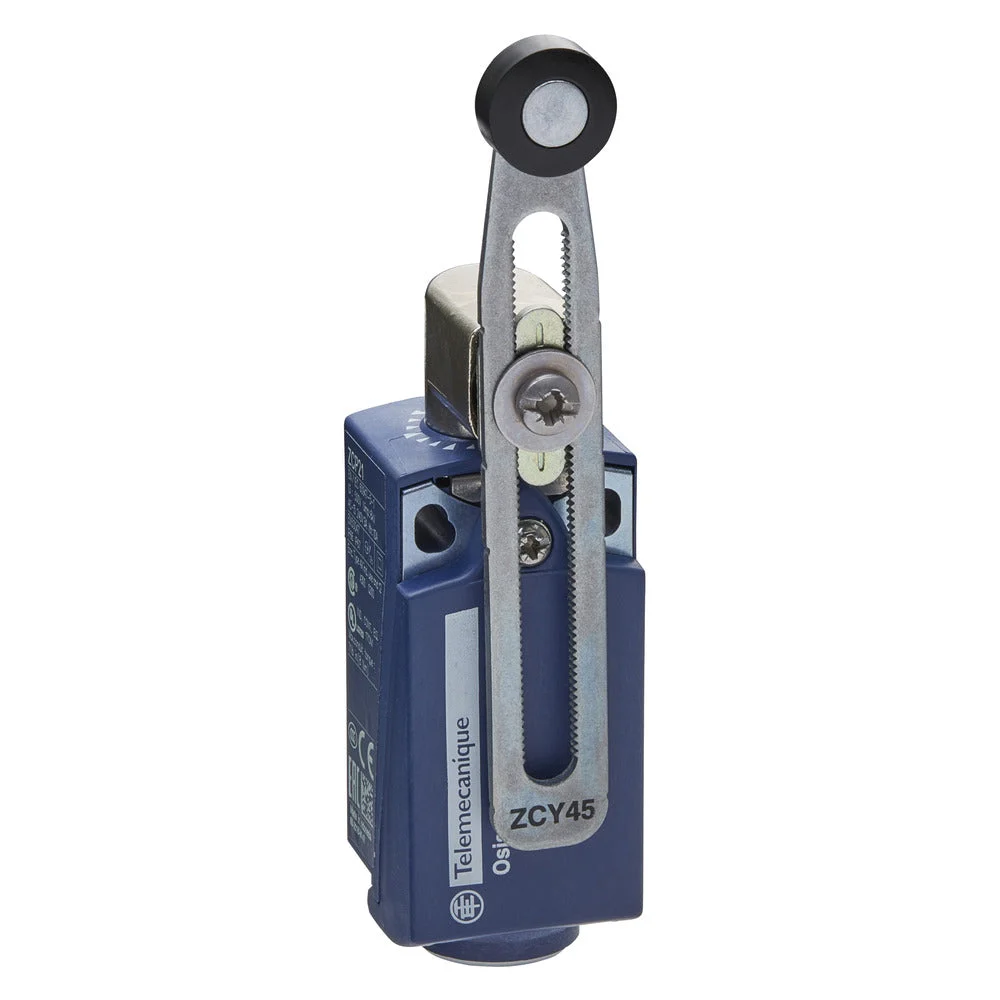

This limit switch from the Telemecanique OsiSense XC standard from Schneider Electric with plastic housing has 1 make contact (NO) and 1 break contact (NC). The limit switch features an adjustable roller lever as an operating element and has the following cable input: ISO M16x1.5. Also, this Schneider Electric switch can be used at an operating temperature of -25°C and 70°C. Furthermore, this limit switch has the following dimensions: 30x31x158mm (LxWxH).
Specifications
Width sensor (mm) : 31
Height of sensor (mm) : 65
Length of sensor (mm) : 30
Rated operation current Ie at AC-15, 230 V (A) : 3
Rated operation current Ie at DC-13, 230 V (A) : 0.27
Switching function : Quick-break switch
Forced opening : Yes
Number of contacts as normally closed contact : 1
Number of contacts as normally open contact : 1
Type of interface : None
Type of interface for safety communication : None
Construction type housing : Cuboid
Material : Plastic
Coating housing : Other
Type of control element : Adjustable roller lever
Alignment of the control element : Other
Electrical connection : Cable entry metrical
Explosion safety gas : None
Explosion safety dust : None
Ambient temperature during operating (°C) : -25 °C to 70 °C
Degree of protection (IP) : IP66/IP67
