Schneider Electric Merten System M Control Element/Central Plate Switchgear – MTN5250-0414

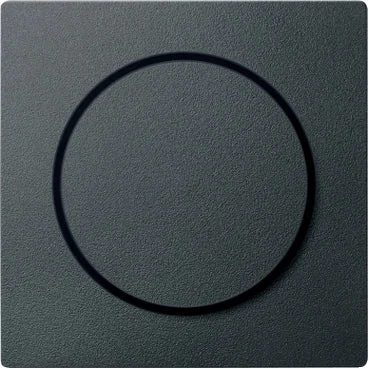

This knob is a component from the System M series and can be used to control a dimmer for lighting. The component needs to be combined with a suitable base and a cover frame to make a complete set. It could be used with a push-off switch, a push-change switch for incandescent halogen lamps. And it can be used with the universal LED dimmer to control LED lighting.

The dimensions of this System M insert are 55mm x 55mm. Therefore, it is compatible with all cover frames from Atelier M, M-Pure, M-Pure Decor, and M-Smart. The insert is made of high-quality polycarbonate (plastic) and is finished in anthracite color with a matte finish. The dimensions of this product are 73mm (H) x 73mm (W) x 17mm (D) and the weight is 25g.

This insert is attached to the base with a clamp. The base is intended for built-in installation in plasterwork. It has an IP20 protection degree. This product has the Green Premium eco-label. The driving force behind Schneider Electric’s sustainability performance, providing you with direct insight into the ecological information about this product. This product is completely halogen-free.

Specifications

Model : Turn button
Imprint/indication : None
Scannable symbol/barrier free : No
Utilization : Dimmer
Suitable for touch sensor connector for bus system : No
Type of fastening : Screw mounting
Monitoring window/light outlet : No
Material : Plastic
Material quality : Thermoplastic
Halogen free : Yes
Surface protection : Untreated
Surface finishing : Matt
Color : Anthracite
RAL-number (similar) : 7024
With label area : No
With exchangeable lens/symbol : No
Suitable for degree of protection (IP) : IP20
