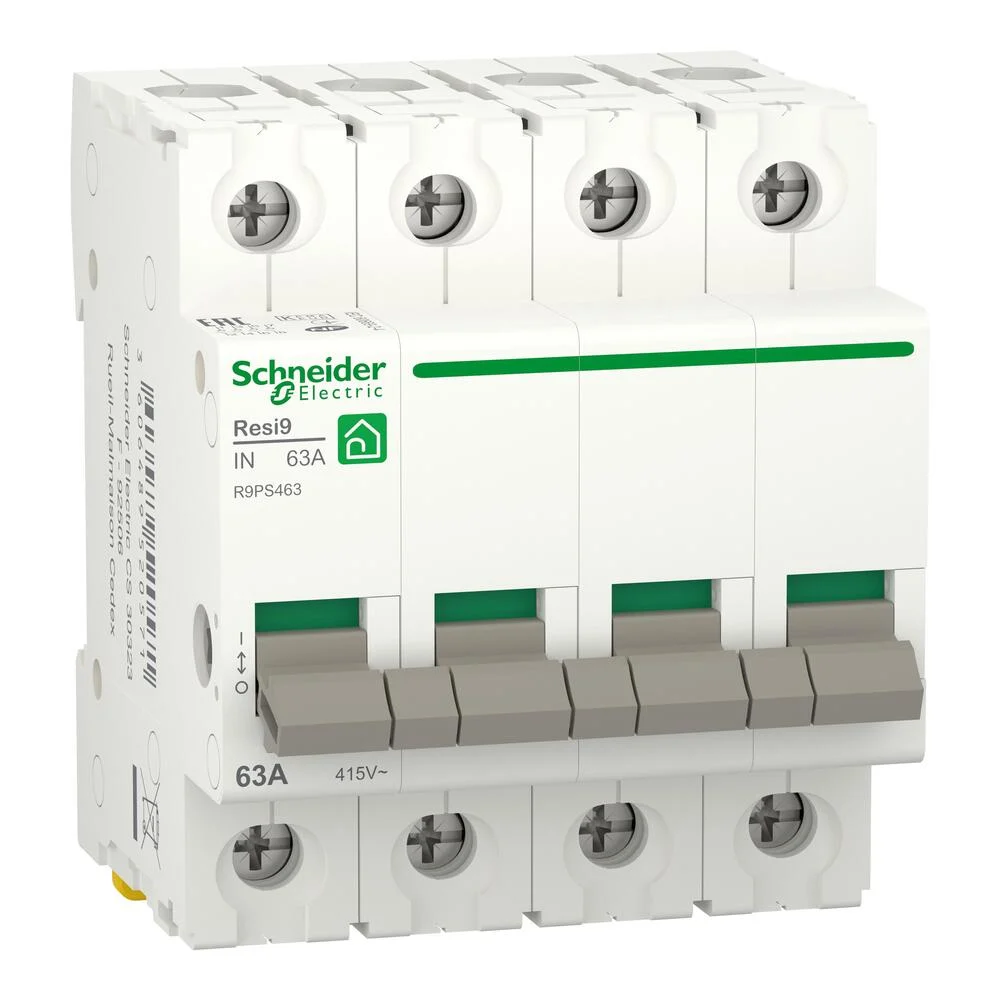

This 4-pole main switch from Schneider Electric’s Resi9 series has a rated continuous current of 63A and a maximum rated operating voltage of 415V. In addition, the load separator has a rocker arm as an operating element (gray). Furthermore, the Schneider Electric Resi9 main switch has a protection rating of IP20 and the following dimensions: 81x72x70.5mm (HxWxD).
Specifications
Switching function : Off switch
Number of contacts as normally open contact : 4
Number of contacts as normally closed contact : 0
Number of contacts as change-over contact : 0
Number of poles : 4
Rated current (A) : 63
Rated voltage (V) : 415
Rated switching capacity (kA) : 6
Short-circuit breaking capacity (Icw) (kA) : 1.5
Voltage-type : AC
With signal lamp : No
Color calotte : White
Width in number of modular spacings : 4
Built-in depth (mm) : 44
Degree of protection (IP) : IP20
Imprint/indication : Other
