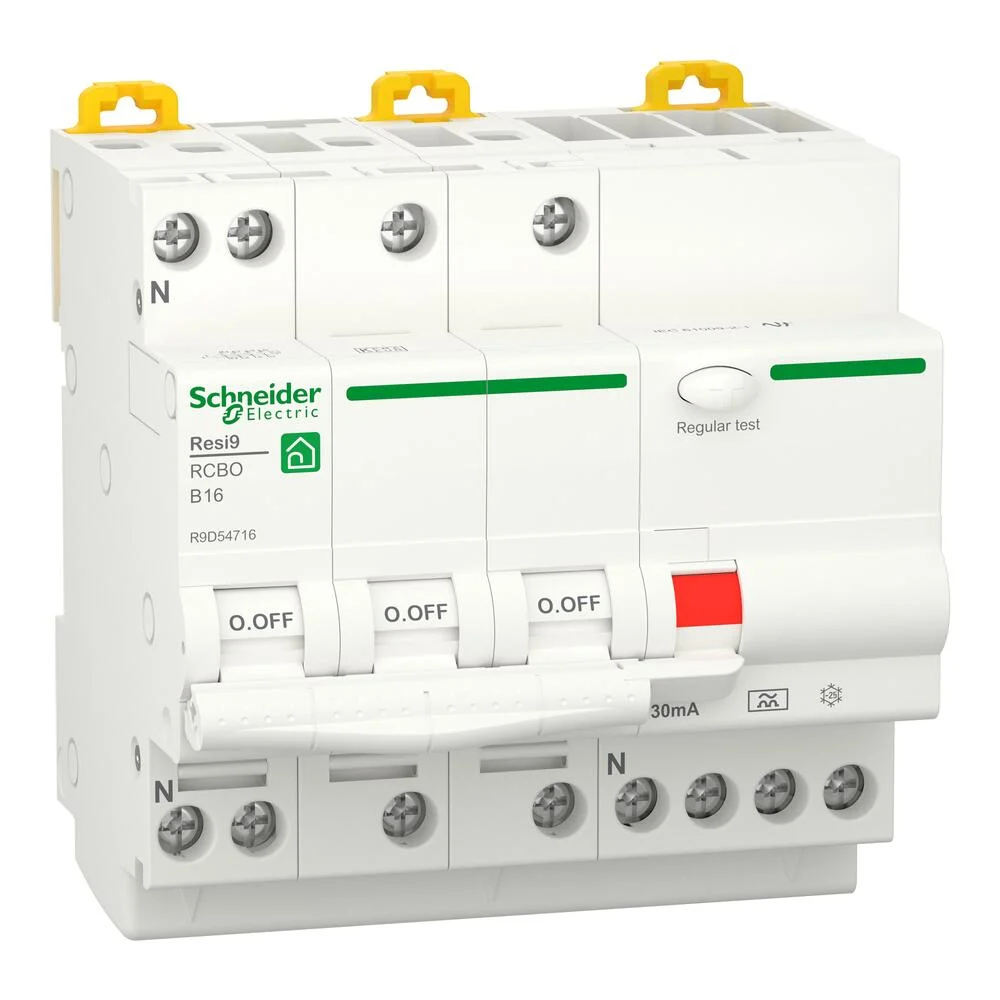

This Resi9 series earth leakage circuit breaker from Schneider Electric features 4 poles, 3 of which are protected (3p+n). In addition, the circuit breaker has a rated voltage of 400V, a rated current of 16A and a tripping characteristic B. The rated fault current is 30mA and the short-circuit tripping capacity is 6kA. This earth leakage circuit breaker with overcurrent protection (RCBO) features an outstanding level of protection. Potential danger of ground faults and overcurrent faults is eliminated by this ground fault circuit breaker.
Specifications
Number of poles (total) : 4
Number of protected poles : 3
Rated voltage (V) : 400
Rated insulation voltage Ui (V) : 400
Rated impulse withstand voltage Uimp (kV) : 4
Rated current (A) : 16
Rated fault current (A) : 0.03
Leakage current type : A
Rated short-circuit breaking capacity according to EN 61009 (kA) : 6
Rated short-circuit breaking capacity Icn according to EN 61009-1 (kA) : 6
Disconnection characteristic : Undelayed
Surge current capacity (kA) : 0.25
Voltage-type : AC
Frequency : 50 Hz
Release characteristic : B
Concurrently switching neutral conductor : Yes
With interlocking device : No
Over voltage category : 3
Pollution degree : 2
Ambient temperature during operating (°C) : -25 °C to 60 °C
Width in number of modular spacings : 4
Built-in depth (mm) : 44.5
Flush-mounted installation : No
Anti-nuisance tripping version : No
Degree of protection (IP) : IP20
Connectable conductor cross section solid-core (mm²) : 1 mm² to 16 mm²
Connectable conductor cross section multi-wired (mm²) : 1 mm² to 10 mm²
