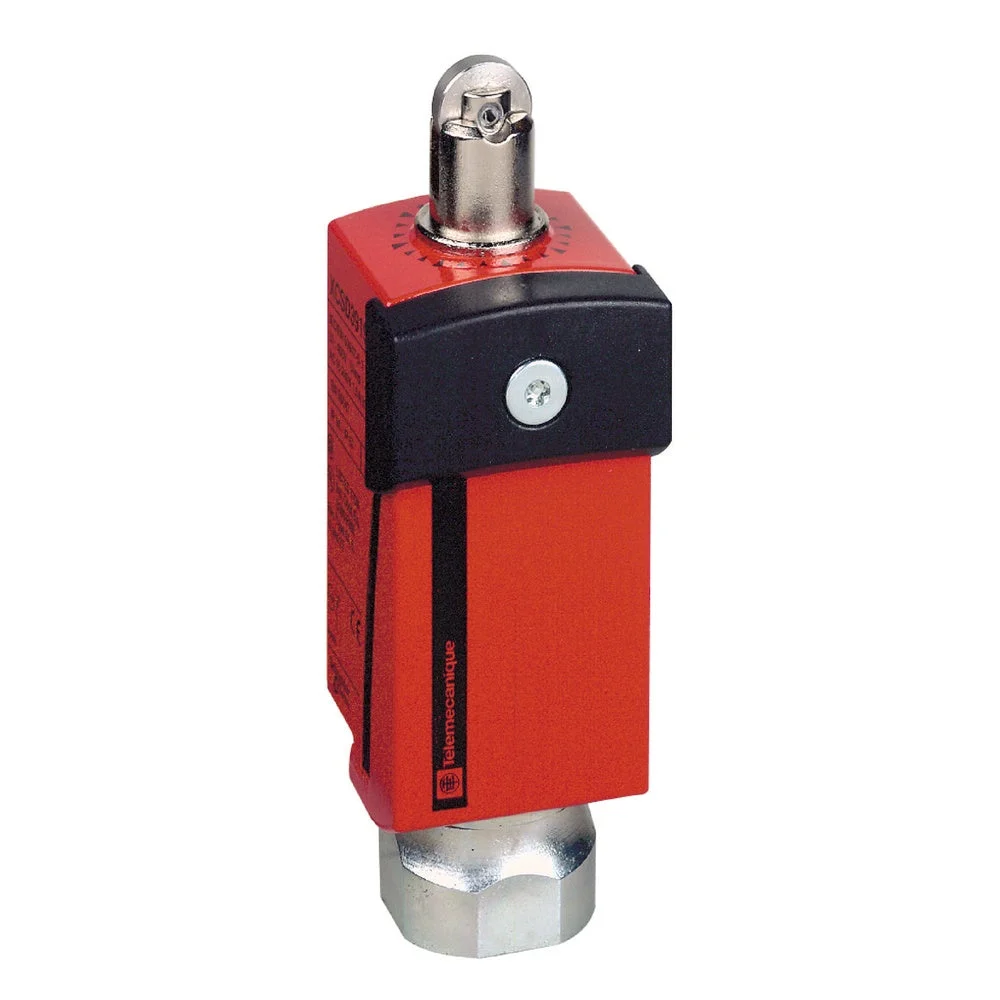

Schneider Electric Limit Switch – XCSD3902P20

Schneider Electric limit switch, operating element design roller cam, housing metal, protection rating (IP) IP66/67, switching function torque switching, electrical connection design cable entry metric, 2 break contacts, suitable for safety function, 1 make contact.

Specifications

Width sensor (mm) : 34
Height of sensor (mm) : 10
Length of sensor (mm) : 35
Rated operation current Ie at AC-15, 230 V (A) : 1.5
Rated operation current Ie at DC-13, 230 V (A) : 0.1
Switching function : Quick-break switch
Forced opening : Yes
Number of safety auxiliary contacts : 1
Number of contacts as normally closed contact : 2
Number of contacts as normally open contact : 1
Type of interface : None
Type of interface for safety communication : None
Construction type housing : Cuboid
Material : Metal
Coating housing : Other
Type of control element : Roller cam
Alignment of the control element : Roller cam straight
Electrical connection : Cable entry metrical
Suitable for safety functions : Yes
Explosion safety gas : None
Explosion safety dust : None
Ambient temperature during operating (°C) : -25 °C to 70 °C
Degree of protection (IP) : IP66/IP67
