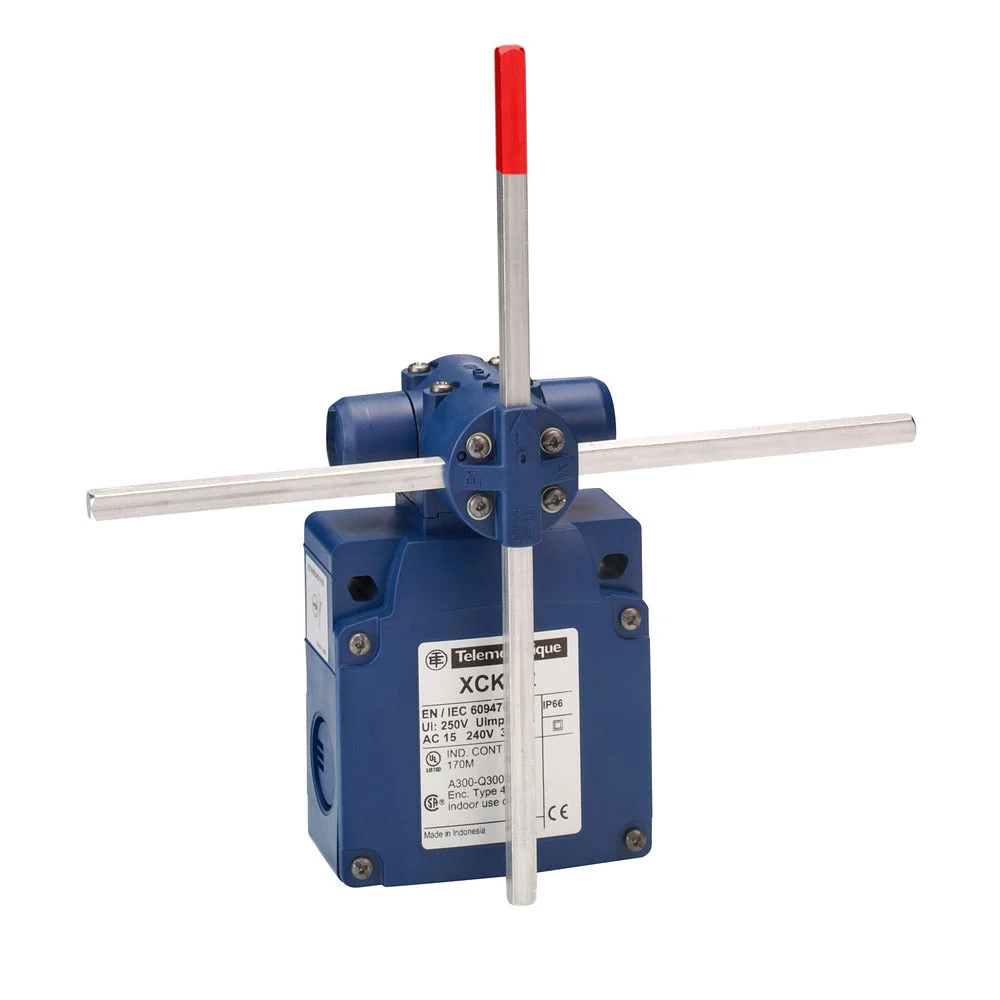

Schneider Electric limit switch, control element design swing lever, housing plastic, degree of protection (IP) IP65, switching function forced contact (not m, electrical connection design other, 2 break contacts, housing according to standard other, housing shape cube.
Specifications
Width sensor (mm) : 200
Height of sensor (mm) : 200
Length of sensor (mm) : 57
Rated operation current Ie at AC-15, 230 V (A) : 3
Rated operation current Ie at DC-13, 125 V (A) : 0.55
Switching function : Slow-action switch and quick-break switch
Forced opening : Yes
Number of contacts as normally closed contact : 2
Type of interface : None
Type of interface for safety communication : None
Construction type housing : Cuboid
Material : Plastic
Coating housing : Other
Type of control element : Rotary lever
Alignment of the control element : Roller cam crossed
Electrical connection : Other
Explosion safety gas : None
Explosion safety dust : None
Ambient temperature during operating (°C) : -25 °C to 70 °C
Degree of protection (IP) : IP65
