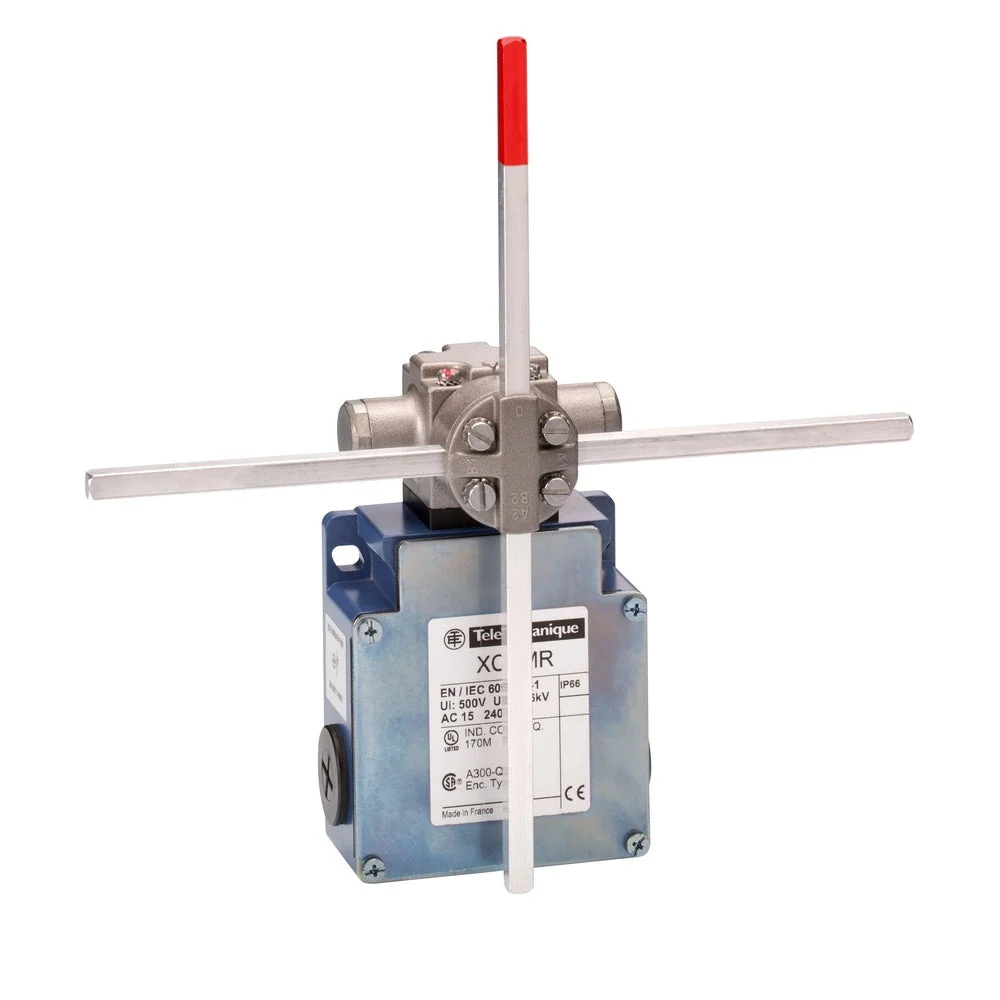

Schneider Electric Limit Switch – XCKMR54D1H29

Schneider Electric limit switch, control element design other, housing metal, degree of protection (IP) IP66/67, switching function other, electrical connection design cable entry metric, 4 break contacts, housing according to standard other, housing shape housing special shape.

Specifications

Width sensor (mm) : 200
Height of sensor (mm) : 118
Length of sensor (mm) : 59
Rated operation current Ie at AC-15, 230 V (A) : 3
Rated operation current Ie at DC-13, 230 V (A) : 0.55
Switching function : Other
Forced opening : Yes
Number of contacts as normally closed contact : 4
Type of interface : None
Type of interface for safety communication : None
Construction type housing : Special construction
Material : Metal
Coating housing : Other
Type of control element : Other
Alignment of the control element : Other
Electrical connection : Cable entry metrical
Explosion safety gas : None
Explosion safety dust : None
Ambient temperature during operating (°C) : -25 °C to 70 °C
Degree of protection (IP) : IP66/IP67
