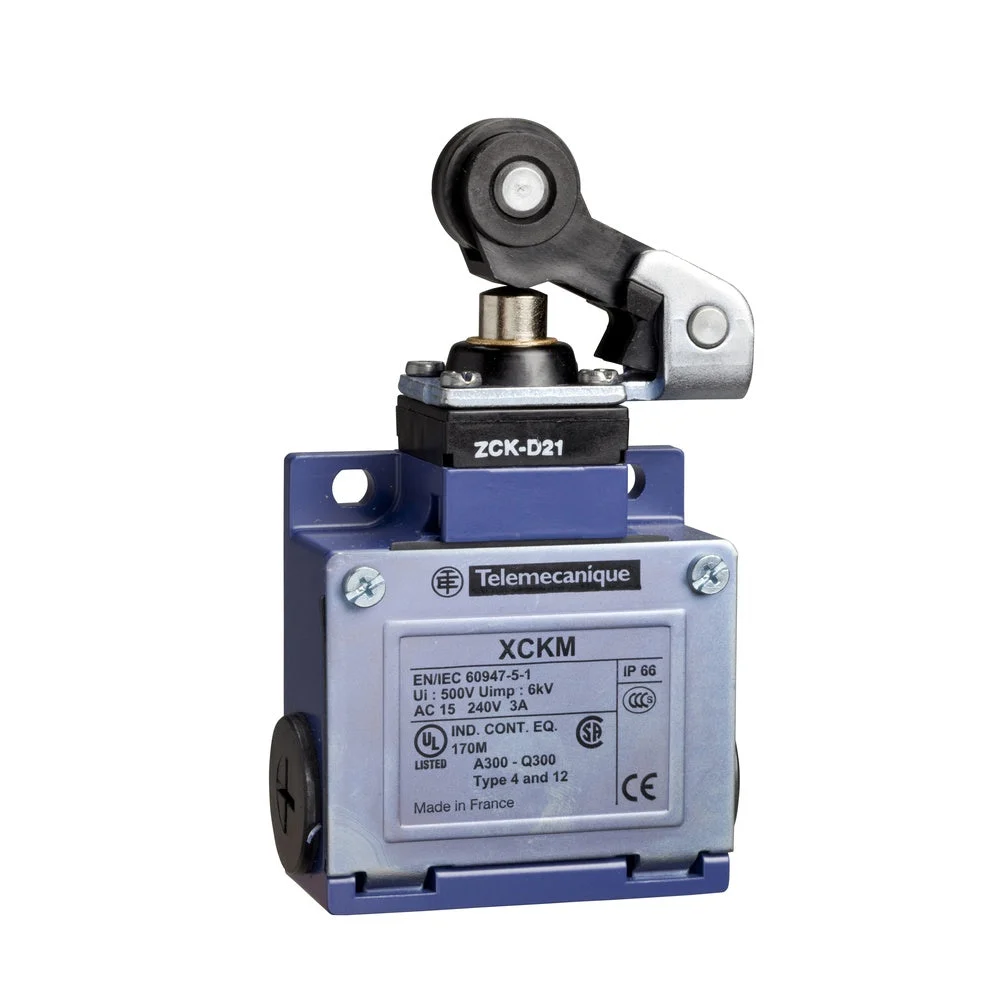

Schneider Electric Limit Switch – XCKM121H29

Schneider Electric limit switch, control element design roller lever, housing metal, protection rating (IP) IP66/67, switching function torque switching, electrical connection design cable entry metric, 1 break contact, 1 make contact, housing according to standard other.

Specifications

Width sensor (mm) : 64
Height of sensor (mm) : 64
Length of sensor (mm) : 30
Rated operation current Ie at AC-15, 230 V (A) : 3
Rated operation current Ie at DC-13, 230 V (A) : 0.27
Switching function : Quick-break switch
Forced opening : Yes
Number of contacts as normally closed contact : 1
Number of contacts as normally open contact : 1
Type of interface : None
Type of interface for safety communication : None
Construction type housing : Special construction
Material : Metal
Coating housing : Other
Type of control element : Roller lever
Alignment of the control element : Other
Electrical connection : Cable entry metrical
Explosion safety gas : None
Explosion safety dust : None
Ambient temperature during operating (°C) : -25 °C to 70 °C
Degree of protection (IP) : IP66/IP67
