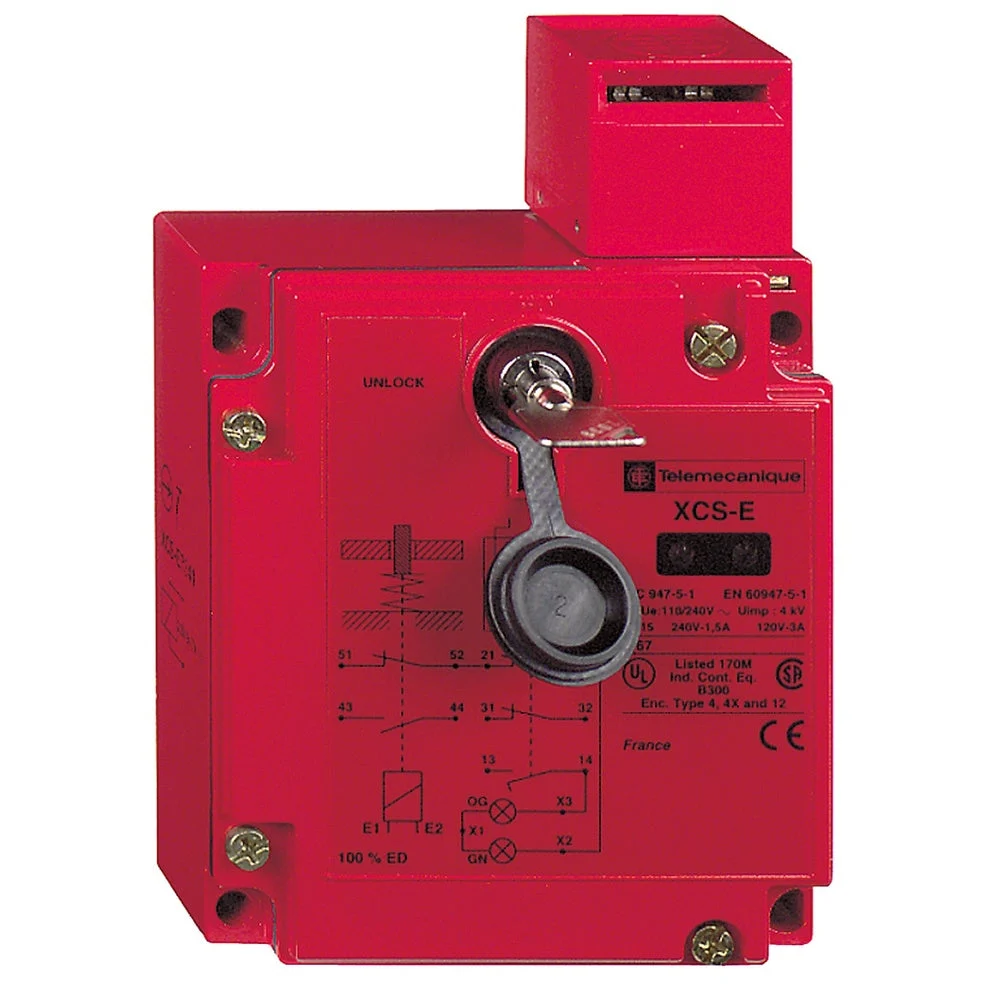

Schneider Electric Limit Switch M Locking Function – XCSE7312

Schneider Electric limit switch m interlock function, suitable for safety function, with status display, housing metal, 2 break contacts, type of interlock resting current principle, 1 make contact, degree of protection (IP) IP67K, closing force 2000N.

Specifications

Status indication : Yes
Suitable for safety functions : Yes
Guard locking force (N) : 2000
Type of guard locking : Quiescent current principle
Rated control supply voltage Us magnet drive at AC 50 Hz (V) : 24 V to 24 V
Rated control supply voltage Us magnet drive at AC 60 Hz (V) : 24 V to 24 V
Rated control supply voltage Us magnet drive at DC (V) : 24 V to 24 V
Width sensor (mm) : 98
Height of sensor (mm) : 146
Length of sensor (mm) : 44
Number of contacts as normally closed contact : 2
Number of contacts as normally open contact : 1
Type of switching contact : Slow-action switch
Rated operation current Ie at AC-15, 125 V (A) : 3
Rated operation current Ie at AC-15, 230 V (A) : 1.5
Rated operation current Ie at DC-13, 125 V (A) : 0.55
Rated operation current Ie at DC-13, 230 V (A) : 0.27
Construction type housing : Cuboid
Material : Metal
Coating housing : Other
Type of interface : None
Type of interface for safety communication : None
Electrical connection : Cable entry metrical
Explosion safety gas : None
Explosion safety dust : None
Ambient temperature during operating (°C) : -25 °C to 40 °C
Degree of protection (IP) : IP67K
