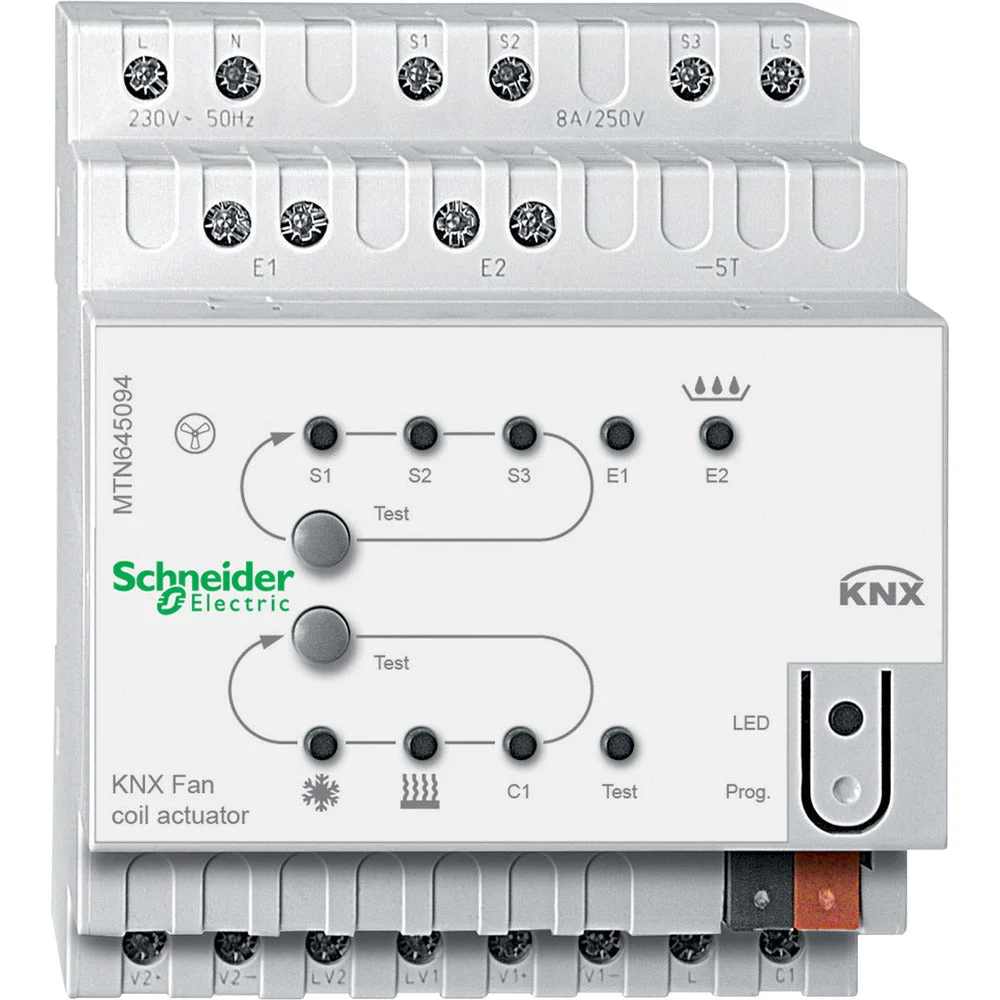

The Schneider Electric M KNX heating actuator bus system can control one fan coil unit with up to three fan speed fans and two valves. It can also manage 2 or 4 coil fan spirals. The actuator is designed for DIN-rail TH35 installation in compliance with EN 60715, and features two floating binary inputs for window contact and condensate water container level contact. Each fan relay has an 8 A switching capacity, and the push-button plus room temperature control can be utilized to activate the fan spiral drive. The system includes an auxiliary relay with a switching power of 16 A for electric heating. The power supply is AC 230 V ±10 %, 50/60 Hz, and the device has a width of four modules or approximately 72 mm. The color of the device is light grey.
Specifications
Bus system KNX : Yes
Bus system KNX radio : No
Bus system radio frequent : No
Bus system LON : No
Bus system Powernet : No
Other bus systems : None
Radio frequent bidirectional : No
Mounting method : DRA (DIN-rail adapter)
Width in number of modular spacings : 4
With bus connection : Yes
Bus module detachable : No
Correcting variable consistent : Yes
Correcting variable switching : Yes
Valve protection function : No
Manual switch : Yes
Number of digital inputs : 2
Max. switching current (resistive load) (A) : 0.5
Number of outputs : 5
Max. output current (A) : 0.5
Switching voltage (V) : 24 V to 230 V
Degree of protection (IP) : IP20
