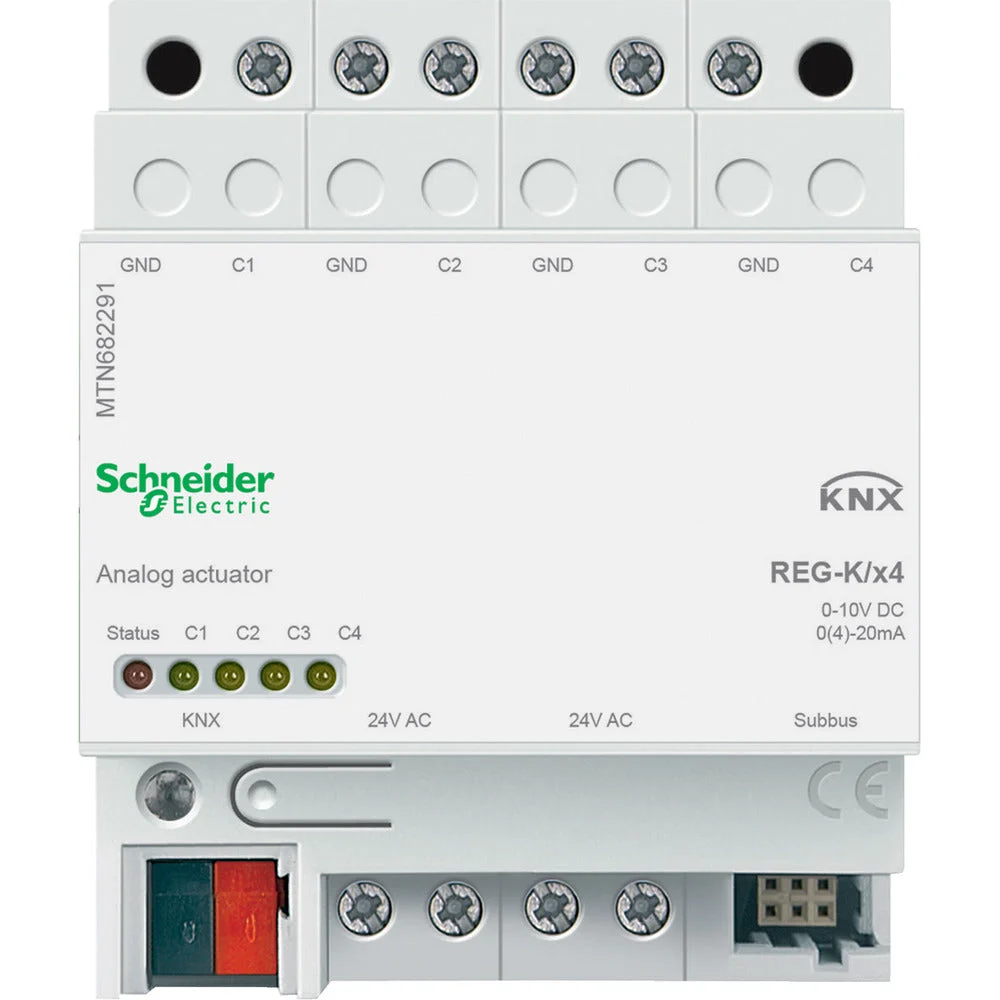

The Schneider Electric M KNX is a base module acting as an analogue actor for bus systems. It shines with 4 outputs, an IP20 protection degree, and a bus connection. It incorporates a DIN-rail adapter and operates with an output current of 0 – 20mA and an output voltage of 0 – 10V. The device’s output channels are parameterizable for various current and voltage signals to manage various analogue variables, for instance, servomotors. It includes a continuity check of current outputs. Suited for mounting on TH35 DIN rails. Auxiliary voltage stands at AC 24V (+/-10%). It has 4 analogue outputs with current signals ranging from 0-20 mA, 4-20 mA and voltage signals from 0-1V, 0-10V. Its continuity check ranges at 4-20 mA. Outputs reach DC 24V, 100mA in total and spans 4 modules with a width of approximately 72mm. Comes with bus connection terminals and a cable cover. Colored in light grey.
Specifications
Bus system KNX : Yes
Bus system KNX radio : No
Bus system radio frequent : No
Bus system LON : No
Bus system Powernet : No
Other bus systems : None
Mounting method : DRA (DIN-rail adapter)
Width in number of modular spacings : 4
Model : Base module
With LED indication : No
With bus connection : Yes
Number of outputs : 4
Output current (mA) : 0 mA to 20 mA
Output voltage (V) : 0 V to 10 V
Degree of protection (IP) : IP20
