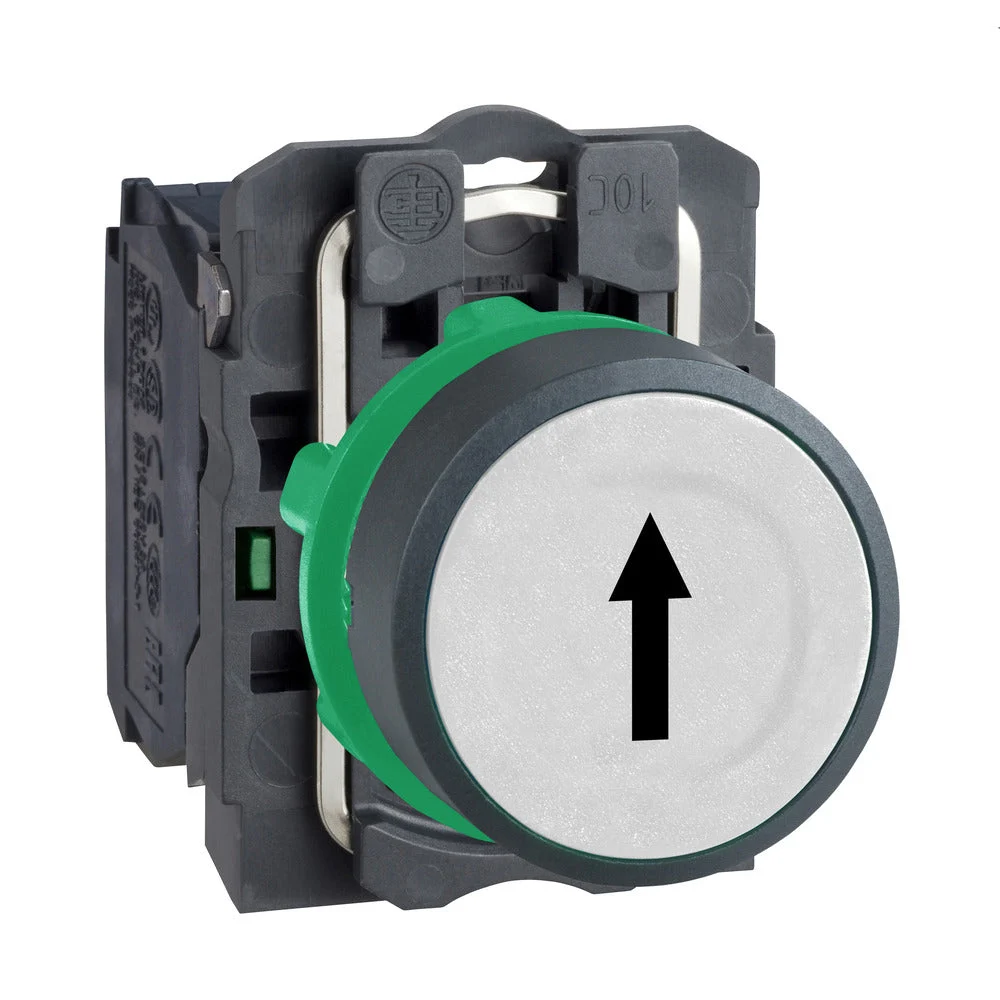

Schneider electric | harmony xb5 series | push buttons. A selection of harmony xb5 series of chromium plated metal control and signalling units designed for use in the most extreme environments. Supplied with several different profile colouring heads including red, orange and yellow which can be used to identify different functions to users. Features and benefits. Slow-break contact which can be operated from any position. Spring return button. Standard black flush style head type with a dark grey plastic bezel and plastic fixing collar. These are easily maintained and clean.
Specifications
Number of command positions : 1
Type of button : Flat
Color button : White
Construction type lens : Round
Hole diameter (mm) : 22.5
Suitable for illumination : No
Switching function latching : No
Spring-return : Yes
Number of contacts as normally open contact : 1
Number of contacts as normally closed contact : 0
Number of contacts as change-over contact : 0
Electrical connection : Screw connection
With front ring : Yes
Material front ring : Plastic
Color front ring : Black
Degree of protection (IP) : IP66
Degree of protection (NEMA) : 4X
