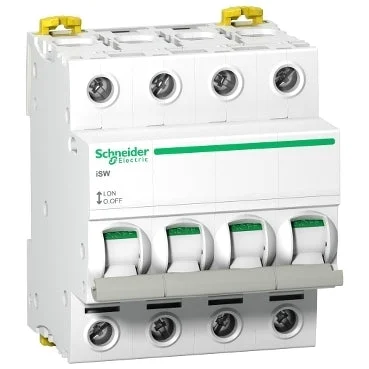

Acti9 isw switch disconnectors. Isw switch-disconnectors for control of opening and closing of circuits under load. Rating: 20 to 125 a. Visisafe for safe operation and maintenance work on circuit protection. Available options: state indication; sealable terminal shield, rotary handle, padlocking device.
Specifications
Switching function : Off switch
Number of contacts as normally open contact : 4
Number of contacts as normally closed contact : 0
Number of contacts as change-over contact : 0
Number of poles : 4
Rated current (A) : 125
Rated voltage (V) : 240
Min. rated voltage (V) : 415
Rated switching capacity (kA) : 5
Short-circuit breaking capacity (Icw) (kA) : 1.5
Voltage-type : AC
With signal lamp : No
Color calotte : White
Width in number of modular spacings : 4
Built-in depth (mm) : 75.5
Degree of protection (IP) : IP20
Imprint/indication : Other
