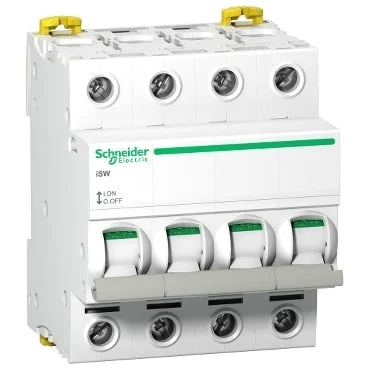

The Acti 9 iSW is a modular and reliable load breaker. This product is a 4P circuit breaker with a nominal current of 40A and an operating voltage of 415V AC. The electrical durability is guaranteed up to 15,000 cycles, and the mechanical durability even up to 20,000 cycles. The operating temperature is -25°C to +60°C. The storage temperature is -40°C to +85°C.
The degree of protection is IP20 and becomes IP40 when this product is placed in a casing. It is easy to mount on a DIN rail. The width in the number of 9mm modules is 8. The dimensions are 85mm (H) x 72mm (W) x 73mm (D). This circuit breaker is used for control and insulation. This product complies with EN/IEC 60947-3.
Specifications
Switching function : Off switch
Number of contacts as normally open contact : 4
Number of contacts as normally closed contact : 0
Number of contacts as change-over contact : 0
Number of poles : 4
Rated current (A) : 40
Rated voltage (V) : 240
Min. rated voltage (V) : 415
Rated switching capacity (kA) : 5
Short-circuit breaking capacity (Icw) (kA) : 1.26
Voltage-type : AC
With signal lamp : No
Color calotte : White
Width in number of modular spacings : 4
Built-in depth (mm) : 75.5
Degree of protection (IP) : IP20
Imprint/indication : Other
