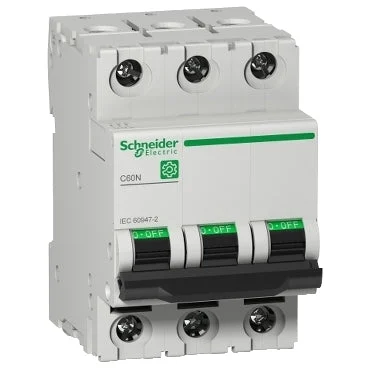

This Multi9 C60N is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, rated 16A current, and C tripping curve. The rated short circuit breaking capacity is up to 10kA at 415VAC, conforming to the EN/IEC 60947-2 standard. This product complies with both the industrial standard EN/IEC 60898-1 and the residential standard EN/IEC 60947-2. It is designed to offer enhanced protection by preventing electrical threats to people and equipment. This product provides protection from short circuit, earth leakage, and overload. Its fast closing mechanism, overvoltage resistance, and high performance limitation enhance its service life.
This product is intended for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance of up to 10,000 cycles and a mechanical endurance of up to 20,000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. The pollution degree is 3, and the overvoltage category is IV. The product color is light grey (RAL7035). The dimensions are (W) 54mm x (H) 81mm x (D) 72mm, and the weight is 0.36kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C, and the storage temperature is -40°C to 80°C.
Specifications
Built-in depth (mm) : 44
Release characteristic : C
Number of poles (total) : 3
Number of protected poles : 3
Rated current (A) : 16
Rated voltage (V) : 415
Rated insulation voltage Ui (V) : 500
Rated impulse withstand voltage Uimp (kV) : 6
Voltage-type : AC/DC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V (kA) : 20
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V (kA) : 10
Frequency (Hz) : 50 Hz to 60 Hz
Current limiting class : 3
Flush-mounted installation : No
Concurrently switching neutral conductor : No
Over voltage category : 4
Pollution degree : 3
Additional equipment possible : Yes
Width in number of modular spacings : 3
Degree of protection (IP) : IP20
Ambient temperature during operating (°C) : -30 °C to 70 °C
Connectable conductor cross section multi-wired (mm²) : 1 mm² to 25 mm²
Connectable conductor cross section solid-core (mm²) : 1 mm² to 25 mm²
Explosion-proof : No
