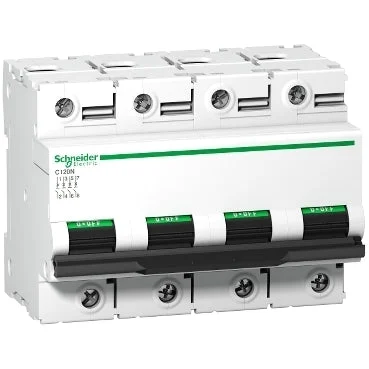

The Schneider Electric C120N circuit breaker can be installed quickly and easily. The rocker switch of the C120N circuit breaker has a contact position indicator. This way, you can always see at a glance whether the circuit breaker is “on” or “off.”. Schneider Electric C120N circuit breakers are available in different variants.
Specifications
Built-in depth (mm) : 44
Release characteristic : C
Number of poles (total) : 4
Number of protected poles : 4
Rated current (A) : 125
Rated voltage (V) : 400
Rated insulation voltage Ui (V) : 500
Rated impulse withstand voltage Uimp (kV) : 6
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V (kA) : 10
Voltage-type : AC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V (kA) : 10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V (kA) : 20
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V (kA) : 10
Frequency (Hz) : 50 Hz to 60 Hz
Current limiting class : 3
Flush-mounted installation : No
Concurrently switching neutral conductor : Yes
Over voltage category : 4
Pollution degree : 3
Additional equipment possible : Yes
Width in number of modular spacings : 6
Degree of protection (IP) : IP20
Ambient temperature during operating (°C) : -25 °C to 70 °C
Connectable conductor cross section multi-wired (mm²) : 1 mm² to 35 mm²
Connectable conductor cross section solid-core (mm²) : 1.5 mm² to 50 mm²
Explosion-proof : No
