Schneider Electric Circuit Breaker – A9N18372

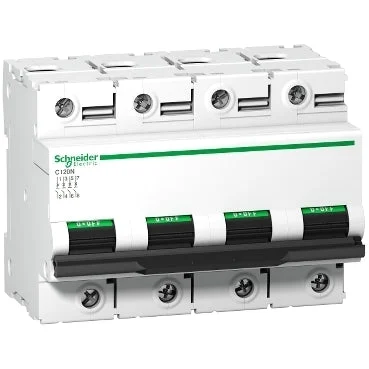

The Acti 9 C120N is a low-voltage circuit breaker (MCB). This product is a 4P circuit breaker with 4 protected poles. It has a nominal current of 80A and a C cut-off characteristic. The breaking capacity at 230VAC to 400VAC is 10000A according to EN/IEC 60898-1. The breaking capacity at 380VAC to 415VAC is 10kA according to EN/IEC 60947-2. This C120 circuit breaker complies with both the domestic standard EN/IEC 60898-1 and the industrial standard EN/IEC 60947-2.

This circuit breaker protects the power circuits against short circuits and overload currents. The off position of the switch on the front is clarified with a green strip, making it easy to locate at a glance. This breaker has a good overvoltage capability and is designed to deliver high-performance with a long lifespan.

This Schneider Electric circuit breaker has an electrical life of up to 5000 cycles and a mechanical life of up to 20000 cycles. The Ui assigned insulation voltage is 500VAC according to EN/IEC 60947-2. The network frequency is 50Hz or 60Hz. The energy limitation class is 3 (according to EN/IEC60898-1), which contributes to cost-effective protection of the power circuit.

The circuit breaker can be mounted on a DIN rail for a modular installation. The width of this breaker is 6 modules of 18mm. The pollution degree is 3 and the overvoltage category is IV. This product is executed in white color (RAL9003). The dimensions are 108mm (W) x 81mm (H) x 73mm (D). The weight is 820g. According to the IEC 60529 standard, the protection degree is IP20. The protection degree increases to IP40 when it is mounted in a modular housing with insulation class II. The operating temperature is between -25°C and 70°C. The storage temperature is between -40°C and 85°C.

Specifications

Built-in depth (mm) : 44
Release characteristic : C
Number of poles (total) : 4
Number of protected poles : 4
Rated current (A) : 80
Rated voltage (V) : 400
Rated insulation voltage Ui (V) : 500
Rated impulse withstand voltage Uimp (kV) : 6
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V (kA) : 10
Voltage-type : AC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V (kA) : 10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V (kA) : 20
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V (kA) : 10
Frequency (Hz) : 50 Hz to 60 Hz
Current limiting class : 3
Flush-mounted installation : No
Concurrently switching neutral conductor : Yes
Over voltage category : 4
Pollution degree : 3
Additional equipment possible : Yes
Width in number of modular spacings : 6
Degree of protection (IP) : IP20
Ambient temperature during operating (°C) : -25 °C to 70 °C
Connectable conductor cross section multi-wired (mm²) : 1 mm² to 35 mm²
Connectable conductor cross section solid-core (mm²) : 1.5 mm² to 50 mm²
Explosion-proof : No
