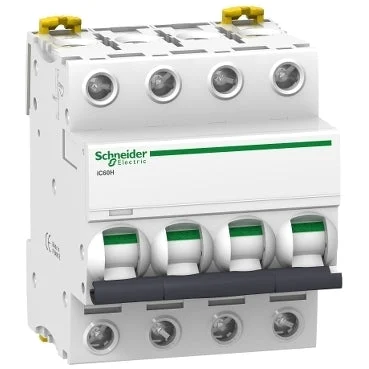

This Acti9 iC60H is a multi-standard low-voltage installation automatic with double tunnel connections. It is a 4P installation automatic with 4 secured poles. It has a nominal current of 32A and a C switching characteristic. The switching capacity of this installation automatic is 10000A at 400VAC according to the standard EN/IEC 60898-1 (domestic standard) and 30kA at 220VAC to 240VAC according to the standard EN/IEC 60947-2 (industrial standard).
This iC60N installation automatic complies with both the domestic standard EN/IEC 60898-1 and the industrial standard EN/IEC 60947-2. This installation automatic protects the power circuits against short-circuit and overload currents. The unique VisiTrip indicator shortens the search for the switched off (tripped) automatic by clearly marking it. The green indication of VisiSafe guarantees the physical opening of the contacts, so that maintenance can be carried out downstream. The fast switching mechanism extends the life of this component.
This Schneider Electric installation automatic has an electrical lifespan of up to 10,000 cycles and a mechanical lifespan of up to 20,000 cycles. The Ui assigned insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) reduces the costs for protecting the power circuit. It can be mounted on a DIN rail for a modular installation. The width of this automatic is 4 modules of 18mm.
The pollution degree is 3 and the overvoltage category is IV. This product is executed in the color white (RAL9003). The dimensions are 72mm (W) x 85mm (H) x 78.5mm (D). The weight is 0.5kg. According to the standard IEC 60529, the protection degree is IP20. The protection degree increases to IP40 when it is mounted in a modular housing with insulation class II. The operating temperature is between -35°C and 70°C. The storage temperature is between -40°C and 85°C.
Specifications
Built-in depth (mm) : 44.5
Release characteristic : C
Number of poles (total) : 4
Number of protected poles : 4
Rated current (A) : 32
Rated voltage (V) : 400
Rated insulation voltage Ui (V) : 500
Rated impulse withstand voltage Uimp (kV) : 6
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V (kA) : 10
Voltage-type : AC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V (kA) : 10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V (kA) : 30
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V (kA) : 15
Frequency (Hz) : 50 Hz to 60 Hz
Current limiting class : 3
Flush-mounted installation : No
Concurrently switching neutral conductor : No
Over voltage category : 4
Pollution degree : 3
Additional equipment possible : Yes
Width in number of modular spacings : 4
Degree of protection (IP) : IP20
Ambient temperature during operating (°C) : -35 °C to 70 °C
Connectable conductor cross section multi-wired (mm²) : 1 mm² to 25 mm²
Connectable conductor cross section solid-core (mm²) : 1 mm² to 35 mm²
Explosion-proof : No
