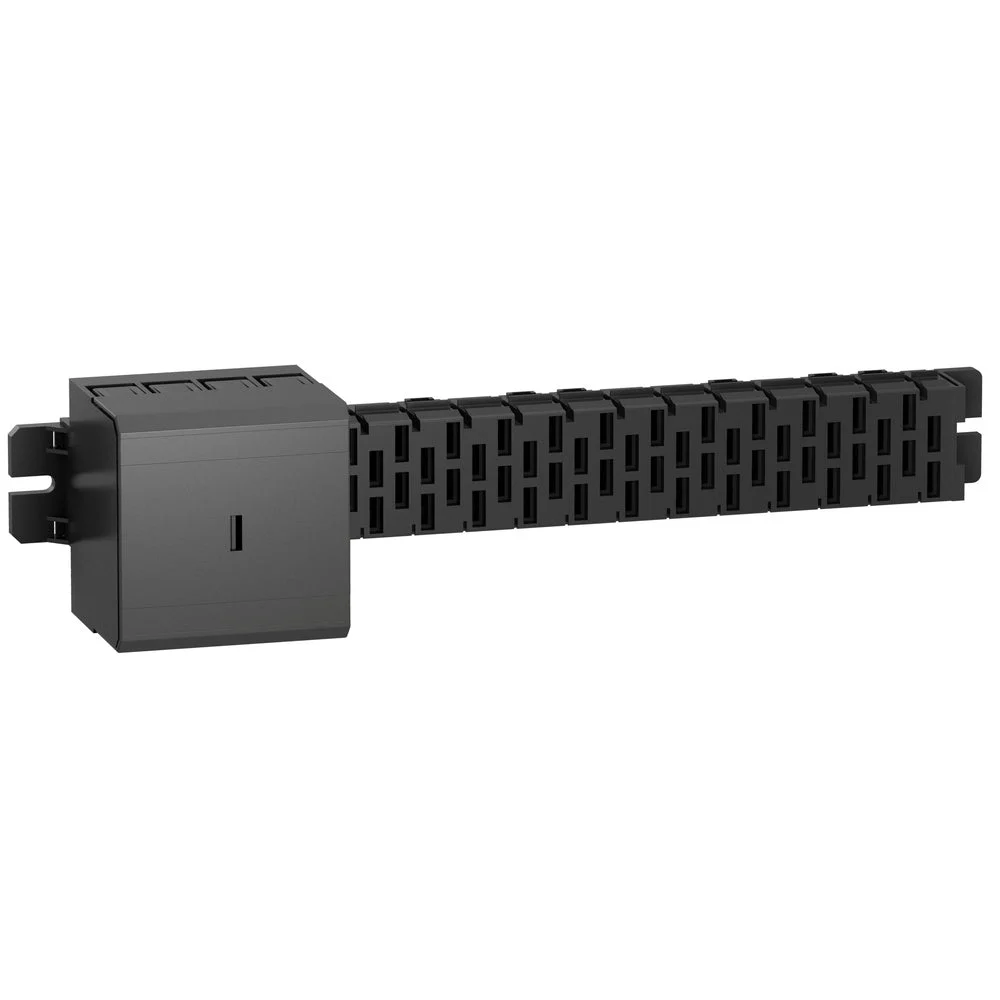

The schneider electric bus bars can be screw-mounted onto any type of support. However if it is to be used in conjunction with component mounting plates incorporating a tap-off, it is essential that it is mounted on the am1dl201 rail. When mounting tap-offs, the rated operational current of the busbar should be taken into account: 160 a at 35 °c. Suitable for use on a circuit capable of delivering not more than the 18 ka rms symmetrical amperes.
Specifications
Height (mm) : 81
Width (mm) : 82
Number of poles : 4
Busbar distance (mm) : 40.5
Busbar thickness (mm) : 30
Short-circuit breaking capacity (Icw) (kA) : 25
