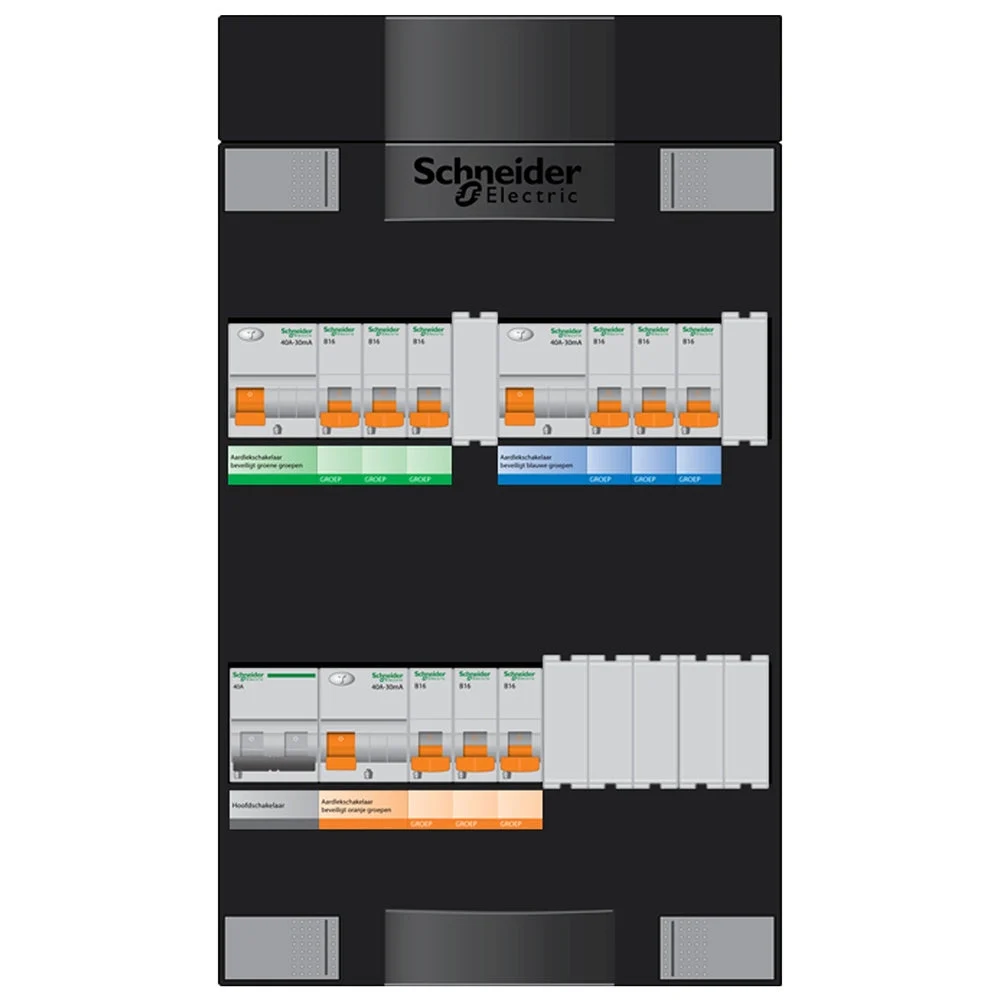

Schneider Electric ADV Installation Cabinet – ADVG2323234H1

Schneider Electric ADV G installation cabinet, (HxWxD) 380x220x100mm, protection installation/earth leakage circuit breaker, total number of groups 9, 1 phase, 9 light groups, 3 earth leakage circuit breakers 30mA, degree of protection (IP) IP20, 9 groups behind earth leakage circuit breaker, surface mounted, 2 pole main switch.

Specifications

Mounting method : Surface mounted (plaster)
Number of phases : 1
Protection : Miniature- / earth leakage circuit breaker
Total number of groups : 9
Number of direct groups : 0
Number of light groups : 9
Number of groups behind earth leakage switch : 9
Number of earth leakage circuit breakers : 0
Number of earth leakage switches 30 mA : 3
Number of earth leakage switches 300 mA : 0
Number of poles main switch : 2
Main switch rated current (A) : 40
Cooker group : None
Cooker group suitable as power current group : No
With socket outlet : No
With bell transformer : No
Over voltage protection : No
Material : Plastic
Degree of protection (IP) : IP20
Height (mm) : 380
Width (mm) : 220
Width in number of modular spacings : 12
Depth (mm) : 100
Extension possible : Yes
With transparent cover : No
Lockable : No
