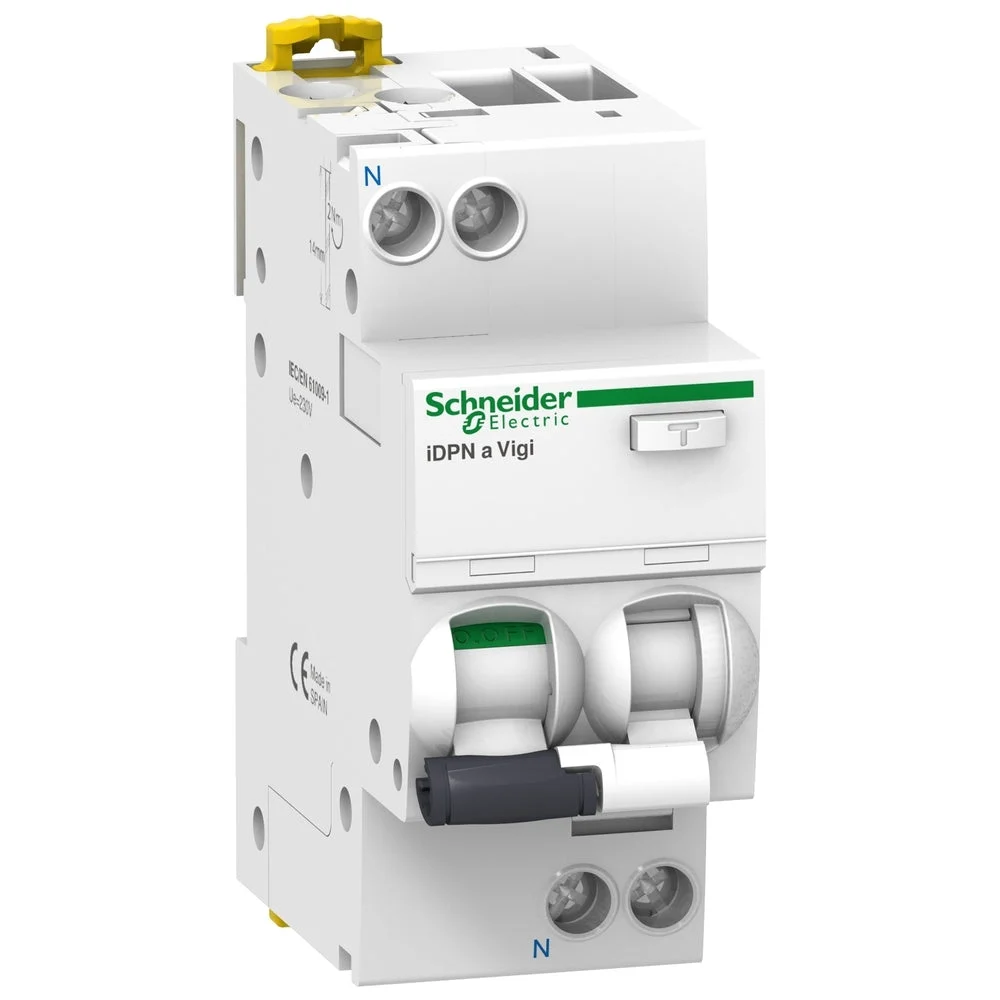

This Acti 9 iDPN Vigi ground fault circuit breaker from Schneider Electric has 2 poles, 1 of which is protected (1p+n). Furthermore, the ground fault circuit breaker can be installed quickly and easily. The green strip on the rocker switch ensures that all poles can be opened under safe conditions (a padlock lock is possible) so that work can be done on live parts. In addition, the red indicator allows immediate identification of a ground fault. Using the test button, the proper functioning of the device can be verified.
Specifications
Number of poles (total) : 2
Number of protected poles : 1
Rated voltage (V) : 230
Rated insulation voltage Ui (V) : 400
Rated impulse withstand voltage Uimp (kV) : 4
Rated current (A) : 32
Rated fault current (A) : 0.03
Leakage current type : A
Current limiting class : 3
Rated short-circuit breaking capacity according to EN 61009 (kA) : 4.5
Rated short-circuit breaking capacity according to IEC 60947-2 (kA) : 4.5
Rated short-circuit breaking capacity Icn according to EN 61009-1 (kA) : 4.5
Disconnection characteristic : Other
Surge current capacity (kA) : 0.25
Voltage-type : AC
Frequency : 50 Hz
Release characteristic : B
Concurrently switching neutral conductor : Yes
With interlocking device : Yes
Over voltage category : 3
Pollution degree : 3
Ambient temperature during operating (°C) : -25 °C to 60 °C
Width in number of modular spacings : 4
Built-in depth (mm) : 44
Flush-mounted installation : No
Anti-nuisance tripping version : No
Degree of protection (IP) : IP20
Connectable conductor cross section solid-core (mm²) : 1 mm² to 16 mm²
Connectable conductor cross section multi-wired (mm²) : 1 mm² to 10 mm²
