Schneider Electric Acti 9 Earth Leakage Circuit Breaker – A9D54620

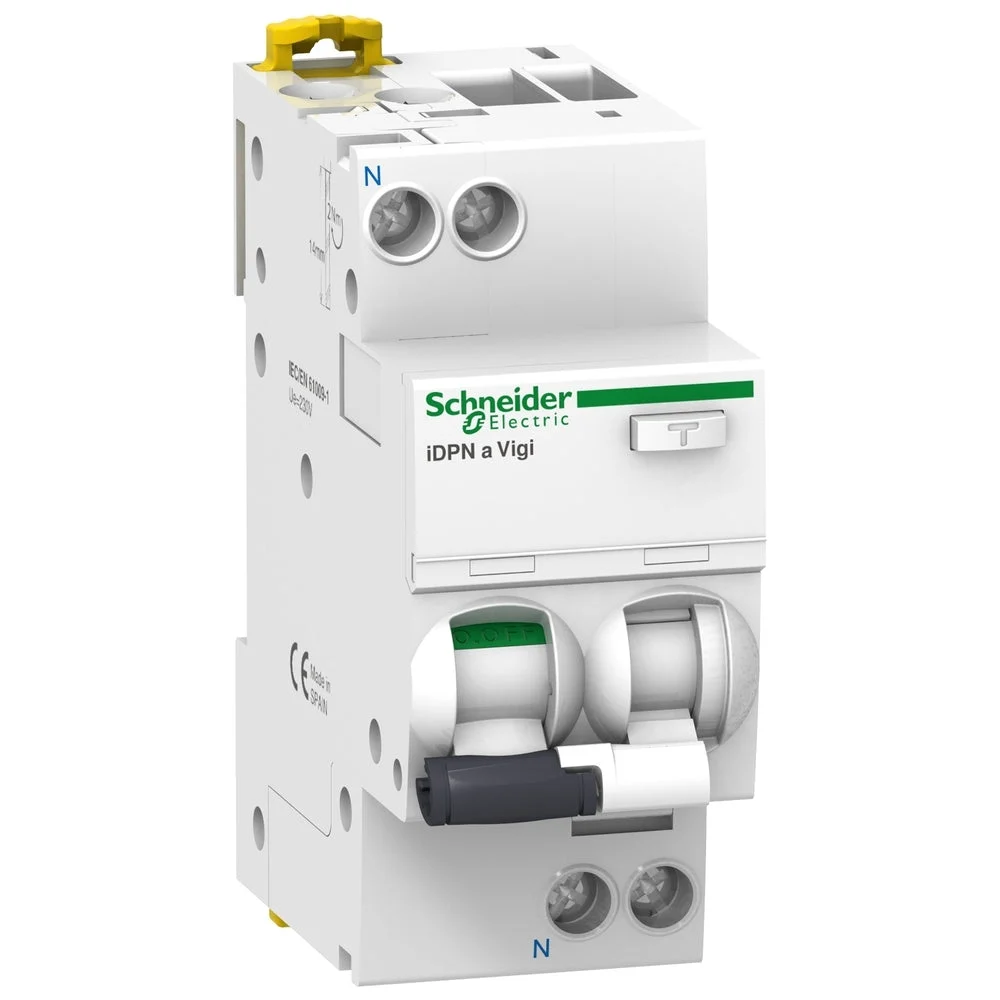

Schneider Electric Acti 9 IDPN Vigi circuit breaker 1, tripping characteristic B, leakage current type A, nom. (measuring) current 20A, co-switching neutral, rated fault current 0.03A, rated breaking capacity EN 60898 4.5kA, 2 poles (total), width in module units 4, breaking characteristic other.

Specifications

Number of poles (total) : 2
Number of protected poles : 1
Rated voltage (V) : 230
Rated insulation voltage Ui (V) : 400
Rated impulse withstand voltage Uimp (kV) : 4
Rated current (A) : 20
Rated fault current (A) : 0.03
Leakage current type : A
Current limiting class : 3
Rated short-circuit breaking capacity according to EN 61009 (kA) : 4.5
Rated short-circuit breaking capacity according to IEC 60947-2 (kA) : 4.5
Rated short-circuit breaking capacity Icn according to EN 61009-1 (kA) : 4.5
Disconnection characteristic : Other
Surge current capacity (kA) : 0.25
Voltage-type : AC
Frequency : 50 Hz
Release characteristic : B
Concurrently switching neutral conductor : Yes
With interlocking device : Yes
Over voltage category : 3
Pollution degree : 3
Ambient temperature during operating (°C) : -25 °C to 60 °C
Width in number of modular spacings : 4
Built-in depth (mm) : 44
Flush-mounted installation : No
Anti-nuisance tripping version : No
Degree of protection (IP) : IP20
Connectable conductor cross section solid-core (mm²) : 1 mm² to 16 mm²
Connectable conductor cross section multi-wired (mm²) : 1 mm² to 10 mm²
