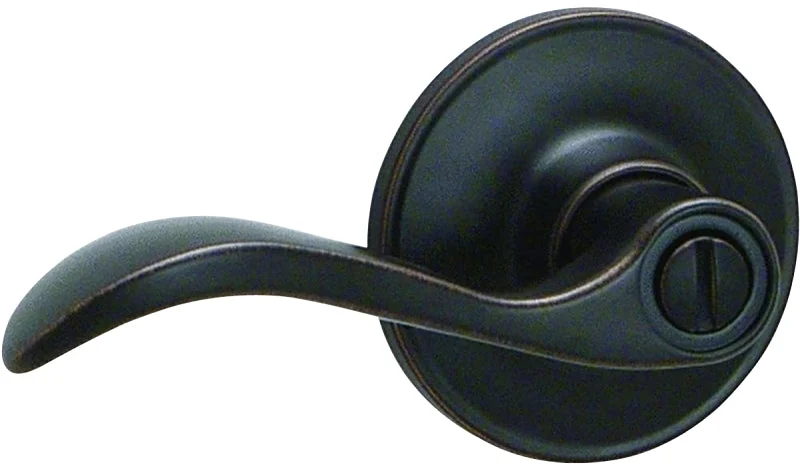

Seville lever bed and bath lock in aged bronze.
Unit: CD
UPC: 043156163182
Model Number: J40VSEV716
Features
- Assured to fit on existing, standard pre-drilled doors
- Lever design pairs well with transitional styles
- Locks from the inside with a turn button
- Unlocks from the inside with a turn button or from the outside with coin turn
- Easy installation with screwdriver
- Self-aligning screw holes make installation easy and hassle-free
Additional Information
- Backset Size: 2-3/8 2-3/4 in
- Backset Type: Universal
- Bolt Throw Size: 1/2 in
- Commercial/Residential: Residential
- Cross Bore Diameter: 2-1/8 in
- Design: Seville
- Dimensions: 2.44 in L x 5.45 in W x 2.63 in H
- Door Thickness: 1-3/8 to 1-3/4 in
- Edge Bore Diameter: 1 in
- Faceplate Size: 1 x 2-1/4 in
- Finish: Aged Bronze
- Latch Housing Diameter: 7/8 in
- Latch Type: Spring
- Lock Type: Mechanical
- Material: Metal
- Projection Size: 1/2 in
- Security Grade: 3
- Strike Size: 1-5/8 x 2-3/4 in
- Strike Type: Full Lip Round Corner
- Throw Length: 1/2 in
Application: For residential single and multi-family doors
Warranty: 5 Years
