About this item

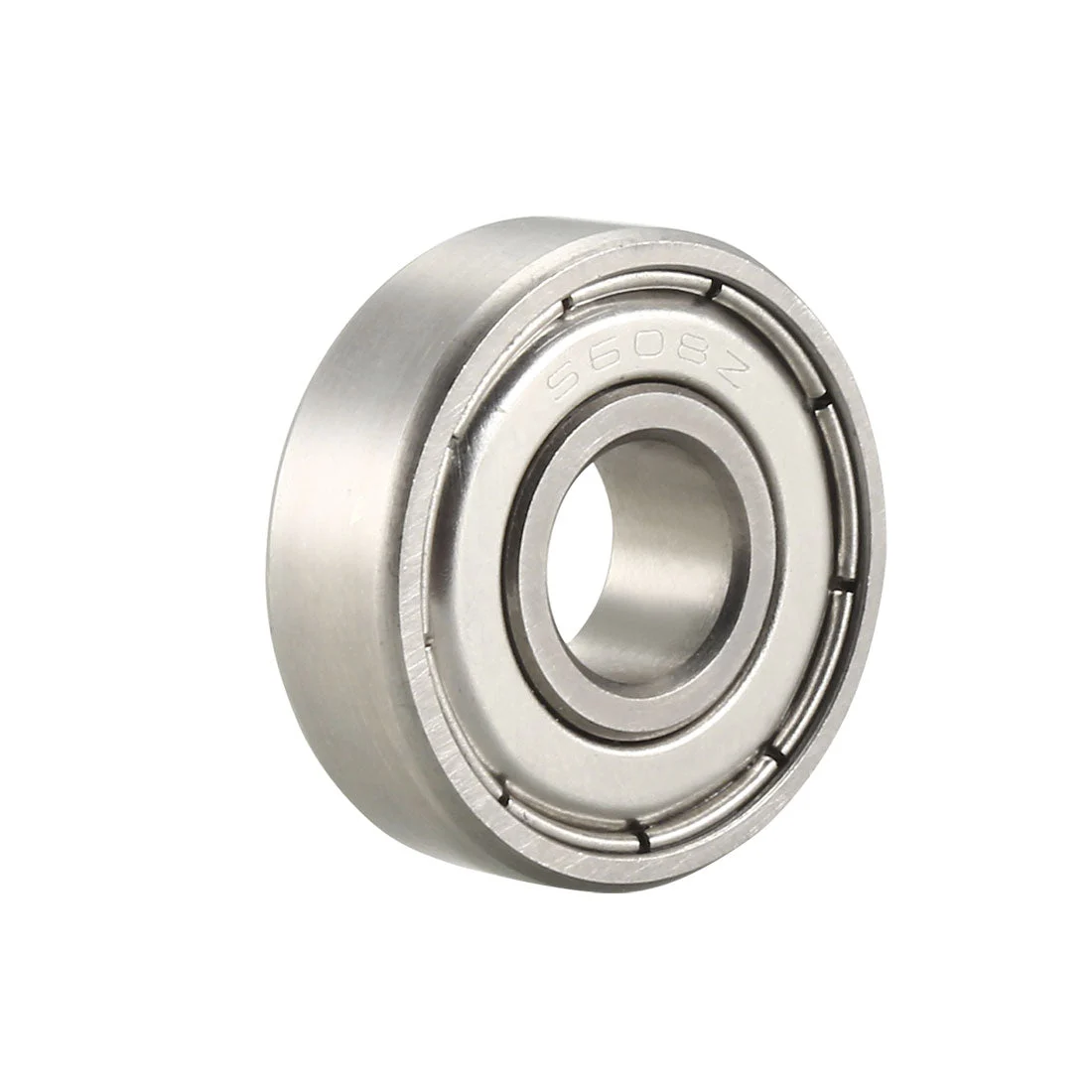

- S608ZZ (I.D.=8mm, O.D.=22mm, Thickness=7mm)
- S608Z bearings are shielded on BOTH SIDES to keep lubricant in
- Stainless steel races for durability and corrosion resistance
- ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
- Static load rating of 1350 newtons and dynamic load rating of 3300 newtons
NOTE:
Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.
Description:
- Single-row, pre-lubricated, normal accuracy.
- Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
- With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
- Stainless steel bearing features stronger rust and corrosion resistance ability.
- Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.
Selection Guide:
Shields (Designation Suffix Z/ZZ) – High speed. Protect from dirt and debris.
Sealed (Designation SuffixRS/2RS) – Made of sheet steel reinforced rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.
Specification:
Model: S608ZZ
Shield Type: Double Shield
Inner Race/Outer Race Material: 440C Stainless Steel (9Cr18)
Cage Material: 304 Stainless Steel (0Cr18Ni9)
Inner Diameter (d): 8mm
Outer Diameter (D): 22mm
Thickness (B): 7mm
Dynamic Load Rating (Cr): 3.30kN
Static Load Rating (Cor): 1.35kN
Accuracy Class: P0 (ABEC-1)
Noise Level: Z1
Number of Pack: 1 Pcs
