About this item
- Model: RV24YN 20S/B203,, metal corrosion resistant, high mechanical strength
- Resistance Value: 20K Ohm Tolerance:+/-10%
- Generally used in mixers,audio, amplifiers, radios, DVD/VCD, televisions, electronic message devices, headsets, lamps and other electronic digital and electronic equipment
- Product advantages, strong conductivity, long service life, adjustable resistance, high resistance range
- Knurled shaft with split design for push-on knob.this item include Knob easy for you to use
- Product Name: Carbon Film Potentiometer
- Model: RV24YN 20S/B203
- Material:Carbon film Metal
- Resistance Value:20k ohm
- Power: 2W
- Tolerance:+/-10%
- Turn Number:Single Turn
- Terminals Number:3
- Features: Round Shaft
- Total Size: 33.4mm x 24.4mm/1.31 x 0.96 inch (H * D)
- Screw Thread Dia.: 8.7mm/0.34 inch
- Shaft Diameter:6mm / 0.24 inch
- Shaft Length(do not include the Screw Thread parts):10mm / 0.4 inch
- Shaft Total Length20.5mm/0.8 inch
- Rotary Knob Size: 15x23mm/0.6 x 0.9inch
- Color:Black, Silver Tone

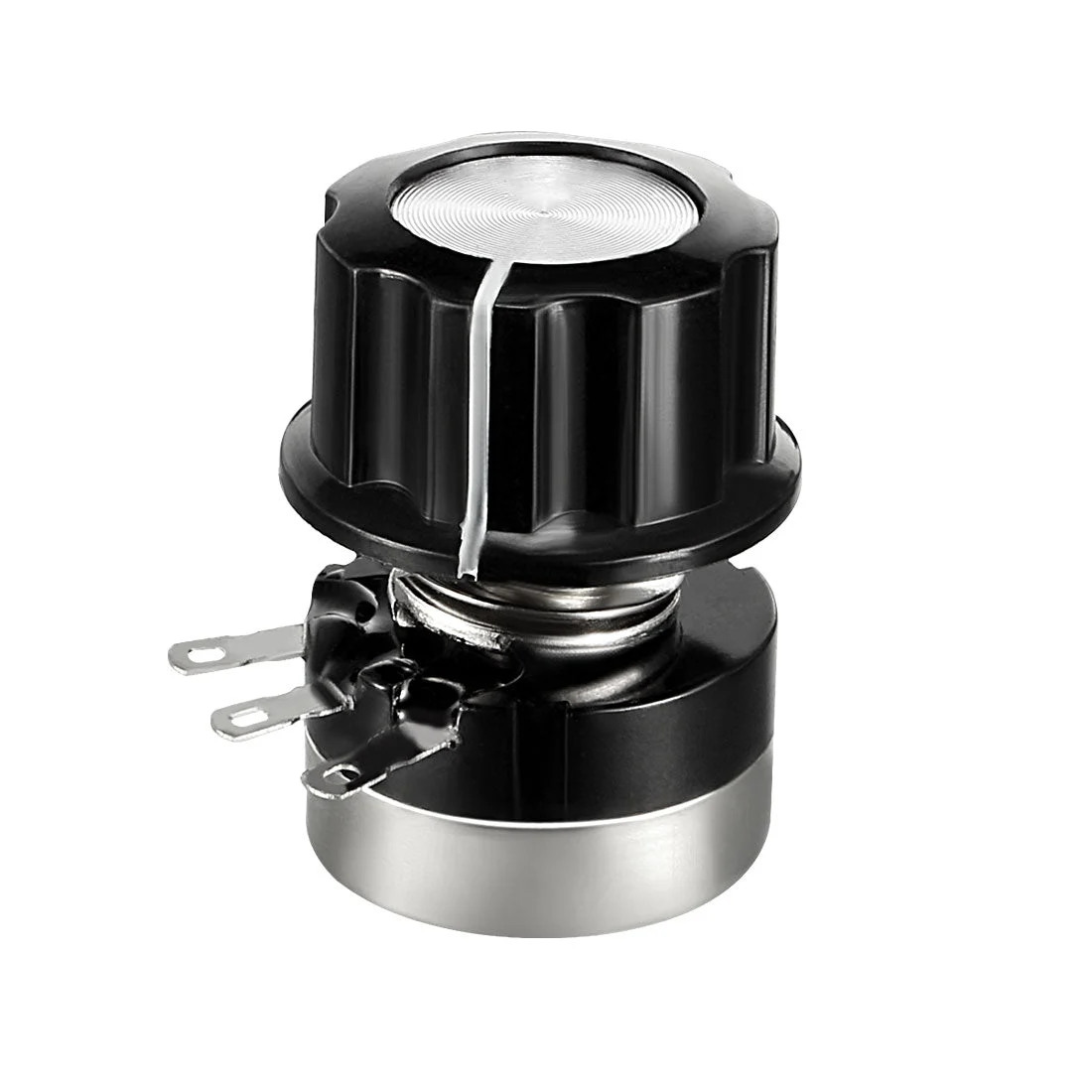

- Package Content:1 x Carbon Film Potentiometer with Knob
- Features: 20K ohm, 3 Terminals, Single Linear, Suits Most Standard Knobs.
- Top adjustment type and knurled shaft for easy operate in daily use.
- Main used to control electrical devices such as volume controls on audio equipment.
- Knurled shaft with split design for push-on knob.
