About this item
- Model:RV097NS
- Package Content :1 x Carbon Film Potentiometer
- Resistance Value: 10K Ohm Tolerance:+/-10%
- Total Size: 27mm x 9mm x 11mm/1.06 x 0.35 x 0.43 inch (L*W*H)(not included pin)
- Top adjustment type and knurled shaft for easy operate in daily use.

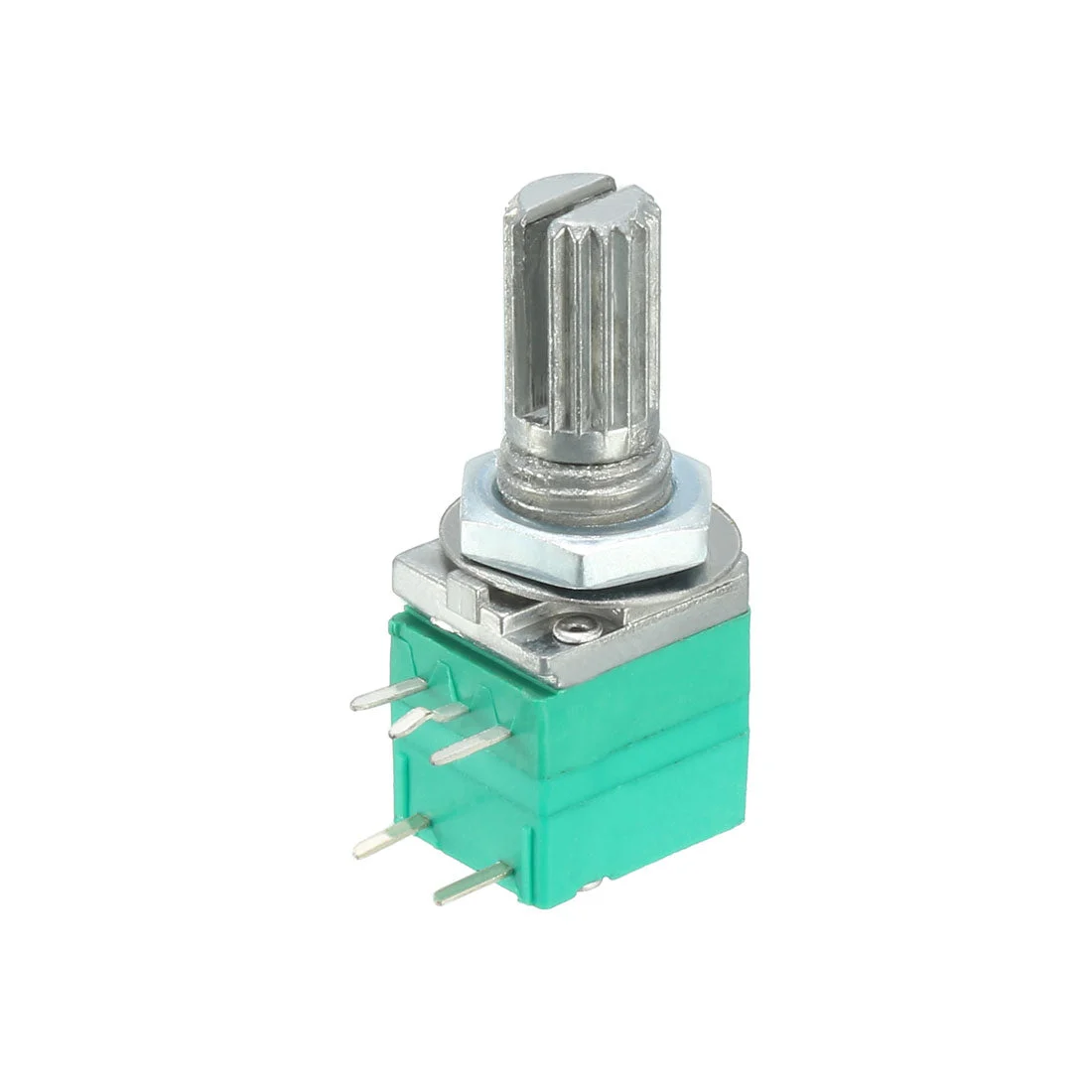

- Product Name: Carbon Film Potentiometer
- Model: RV097NS
- Material: Carbon film Metal
- Resistance Value: 10K ohm
- Tolerance: +/-10%
- Turn Number: Single Turn
- Terminals Number: 5
- Features: Round Shaft
- Total Size: 27mm x 9mm x 11mm/1.06 x 0.35 x 0.43 inch (L*W*H)(not included pin)
- Screw Thread Dia.: 6.5mm/0.26 inch
- Shaft Diameter: 6mm/0.24 inch
- Shaft Length(do not include the Screw Thread parts): 10mm/0.39 inch
- Shaft Total Length: 15mm/0.59 inch
- Package Content: 1 x Carbon Film Potentiometer
- Features: 10K ohm, 5 Terminals, Single Linear, Suits Most Standard Knobs.(this item do not include Knobs)
- Top adjustment type and knurled shaft for easy operate in daily use.
- Main used to control electrical devices such as volume controls on audio equipment.
- Knurled shaft with split design for push-on knob.
