About this item
- [Specification] – Rated Capacity: 75uF; Tolerance: ±5%; Rated Voltage: 450V AC; Overall Size: 137x60mm / 5.4×2.4inch(L*D); Rated Frequency: 50/60Hz; Climatic Category: 40/85/21
- [Characteristic] – This CBB65 run capacitor has characteristics of low loss, heat resistance, anti-overvoltage shock, excellent electrical performance and long service life
- [Working Environment] – This CBB65 capacitor is applied to starting and working of a single-phase motor in a 50Hz/60Hz AC electric power system
- [Application] – The CBB65 capacitor is widely used for air conditioners, air compressors, motors, refrigerators, heat pump condenser, HVAC, generators, illuminating lamps, fans, etc
- [Note] – This capacitor has no positive and negative poles, it can be wired at will. If the capacitor of your motor and air compressor is burnt out or weak, you need to replace it with a new one
Features:
This CBB65 run capacitor has characteristics of low loss, heat resistance, anti-overvoltage shock, excellent electrical performance and long service life.
Standard quick-connect terminals, 4 pins on one post and 2 pins on another.
This CBB65 capacitor is applied to starting and working of a single-phase motor in a 50Hz/60Hz AC electric power system.
The CBB65 capacitor is widely used for air conditioners, air compressors, motors, refrigerators, heat pump condensers, HVAC, generators, illuminating lamps, fans, etc.
Note:
This capacitor has no positive and negative poles, it can be wired at will.
If the capacitor of your motor and air compressor is burnt out or weak, you need to replace it with a new one.
Specifications:

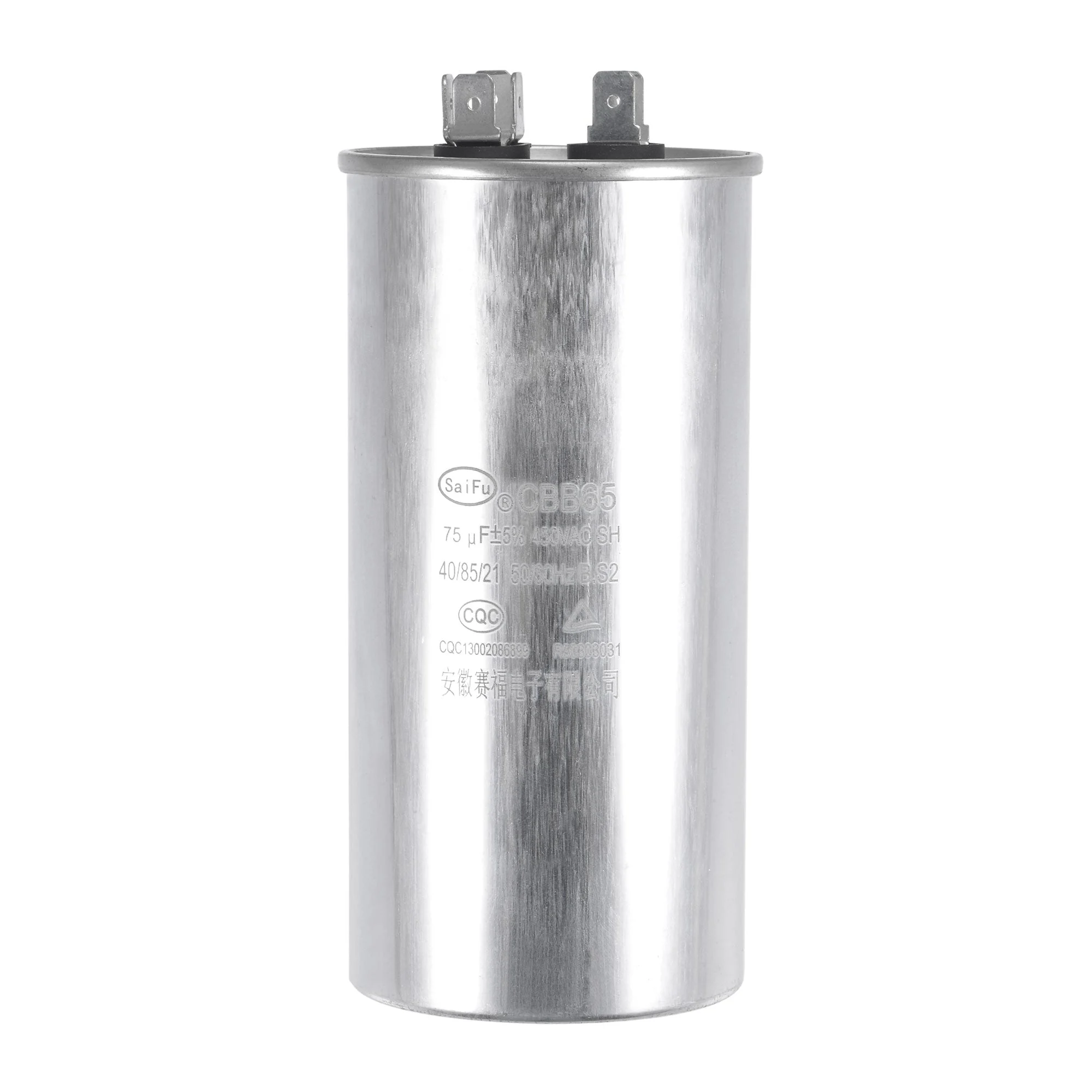

Model: CBB65
Material: Metallized Polypropylene, Aluminum Case
Lead End: 4+2 Terminal
Rated Capacity: 75uF
Tolerance: ±5%
Rated Voltage: 450V AC
Rated Frequency: 50/60Hz
Climatic Category: 40/85/21
Overall Size: 137x60mm / 5.4×2.4 inch (L*D)
Package Includes:
1 x CBB65 Capacitor
