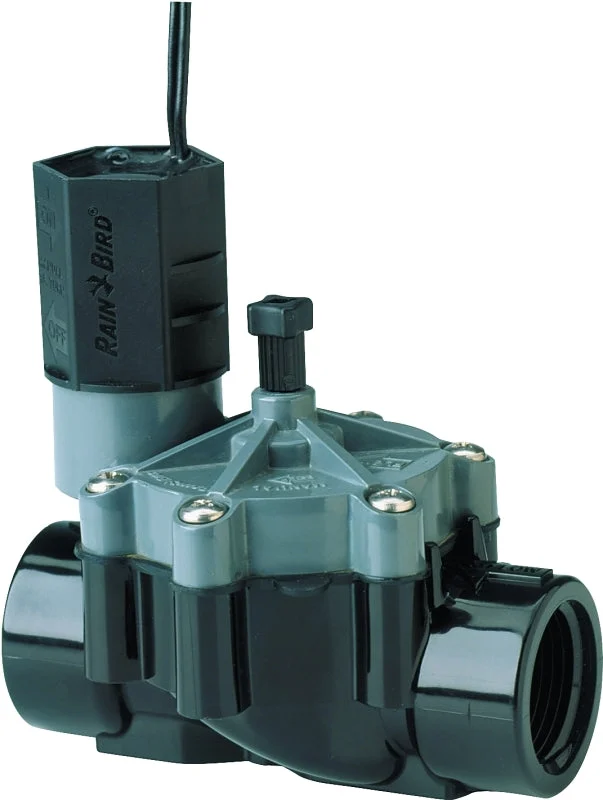

Rain Bird manufactures only the highest quality in-line valves. Use in-line valves in locations where the use of a Pressure Vacuum Breaker (PVB) or a double-check valve is required by city codes to protect against back flow. Check your local city codes to determine what type of valves are required. In-line valves are installed below ground in a valve box down stream from the main line from a PVB or double check valve. In-line valves will not prevent back flow on their own and they need the help of a back flow prevention device.
Features
- 3/4 in female pipe thread inlet and outlet inline irrigation valve
- Buna-N diaphragm offers great performance in harsh water environments
- Reliable, non-clogging design
- Reverse flow design reduces stress on diaphragm for dependable operation
- In-line design minimizes pressure loss of dirt and debris during installation and system start-up
- Operates automatically or manually with manual bleed screw
- Works with any standard sprinkler timer
- Energy efficient, low power encapsulated solenoid with captured plunger
Additional Information
- Body Material: Plastic
- Overall Height: 5 in
- Overall Length: 3.37 in
- Overall Width: 4-3/4 in
- Pressure Rating: 15 to150 psi
- Valve Size: 3/4 in
