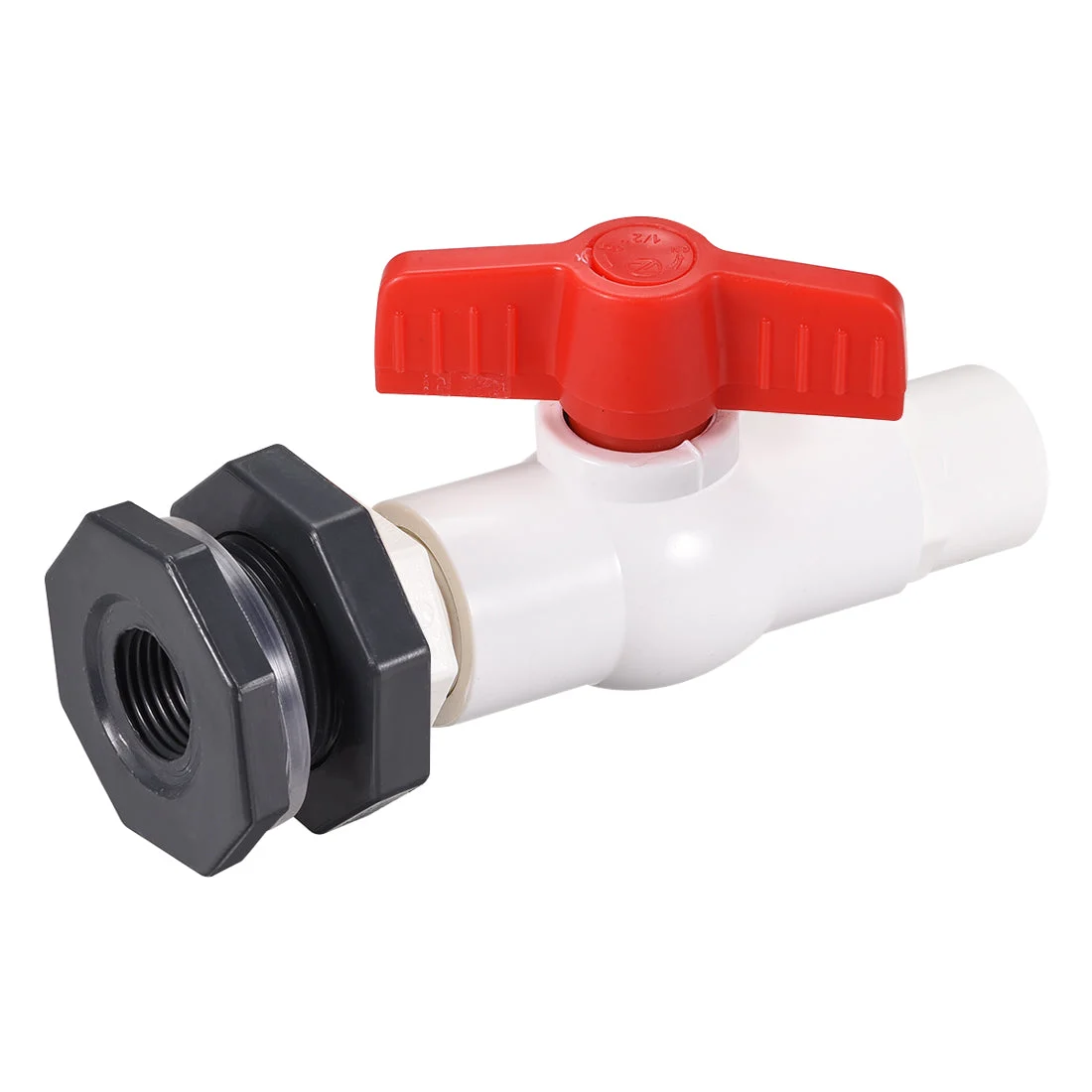

PVC Ball Valve Connector Spigot Kit G1/2, with Bulkhead, Grey White Red

About this item

• [Material] Made of PVC, acid resistance, corrosion resistant.
• [Widely application] Suitable for water bucket, fishbowl, water waste treatment, electroplating factory and other places.
• [Easy to install] Drill a hole in 35mm diameter to install the bulkhead fitting adapter with 4mm durable silicone seal gasket.
• [Specification] The Size of the valve is G1/2. The PVC external adapter can be used directly or glued with a 20mm diameter PVC pipe.
• [Package Content] This kit includes valve, bulkhead fitting adapter, valve PVC external adapter and PVC Union. It’s more convenient to buy four accessories at once.

Specification:
Material: PVC, ABS
Color: White, Grey, Red
Thread Size: G1/2
Total Length: 135mm / 5.31 inch
Valve Inner Diameter: 20mm / 0.79 inch
Valve PVC External Adapter Outer Diameter: 20mm / 0.79 inch
Bulkhead Fitting Adapter:
Outer Diameter: 34.6m / 1.32 inch
Bulkhead Available Thickness: 10mm / 0.39 inch
Silicon Seal Gasket Thickness: 4mm / 0.16 inch
Features:
PVC material is corrosion resistant.
Widely used in water tank, fishbowl, chemical plant pipeline installation, etc.
Need to drill a 35mm diameter hole to install the bulkhead fitting adapter.
Note:
The locking nut of the bulkhead fitting adapter is reversed threaded.
Package Content:
1 x G1/2 Valve
1 x Bulkhead Fitting Adapter
1 x Valve PVC External Adapter
1 x PVC Union
