About this item
- Fit Tube Size(OD): 8mm.
- This fitting is made of nickel-plated brass, and has resistance to high temperature and pressure, good sealing performance and long service life.
- Note: Make sure that the cutting surface of the pipe is vertical. Please insert the tube into the bottom before use.
- Applications: Mainly used for air compression systems, vacuum systems, pneumatic systems.
- The Push-to-connect end can be rotated 360 degrees even after installation, which is convenient to use and has good sealing performance.
Product Features:
Color : Silver Tone
Material : Nickel-plated Copper

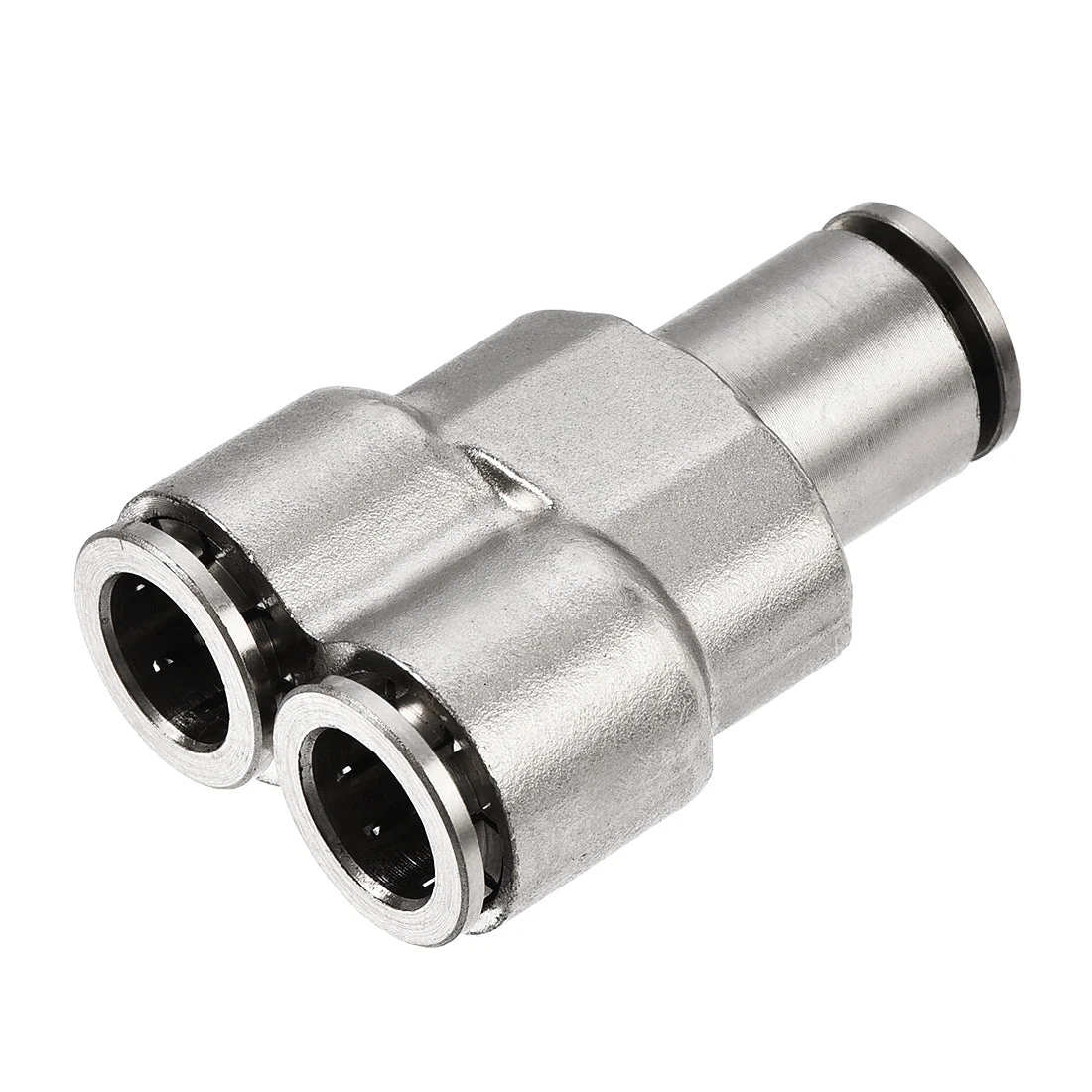

Type: Y Type Connector
Three Tube Size (OD) : 10mm / 0.47″
Operating Pressure : 0-1MPa
Operating temperature:-10 – 60 Degree Celsius
Dimension : 48mm x 33mm x 15.6mm / 1.89-inch x 1.3-inch x 0.61-inch(L x W x H )
Package Content:
1 x Fitting
Description:
1.Quick and simple installation,designed for using to connect with polyethylene, nylon and PU tubing.
2.A good release cap can withstand greater and stronger pressure without tripping.
3.Have flexibility, abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.
4.Easy to install, insert the plastic tube, the cap can be rotated freely, but its rotation is only used when the angle is wrong when the joint is installed.
Mounted:
1.Cut the pipe flat, no slope
2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.
3.After plugging in, try to pull the tube, if you can’t pull it out, it means it has been connected.
4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.
