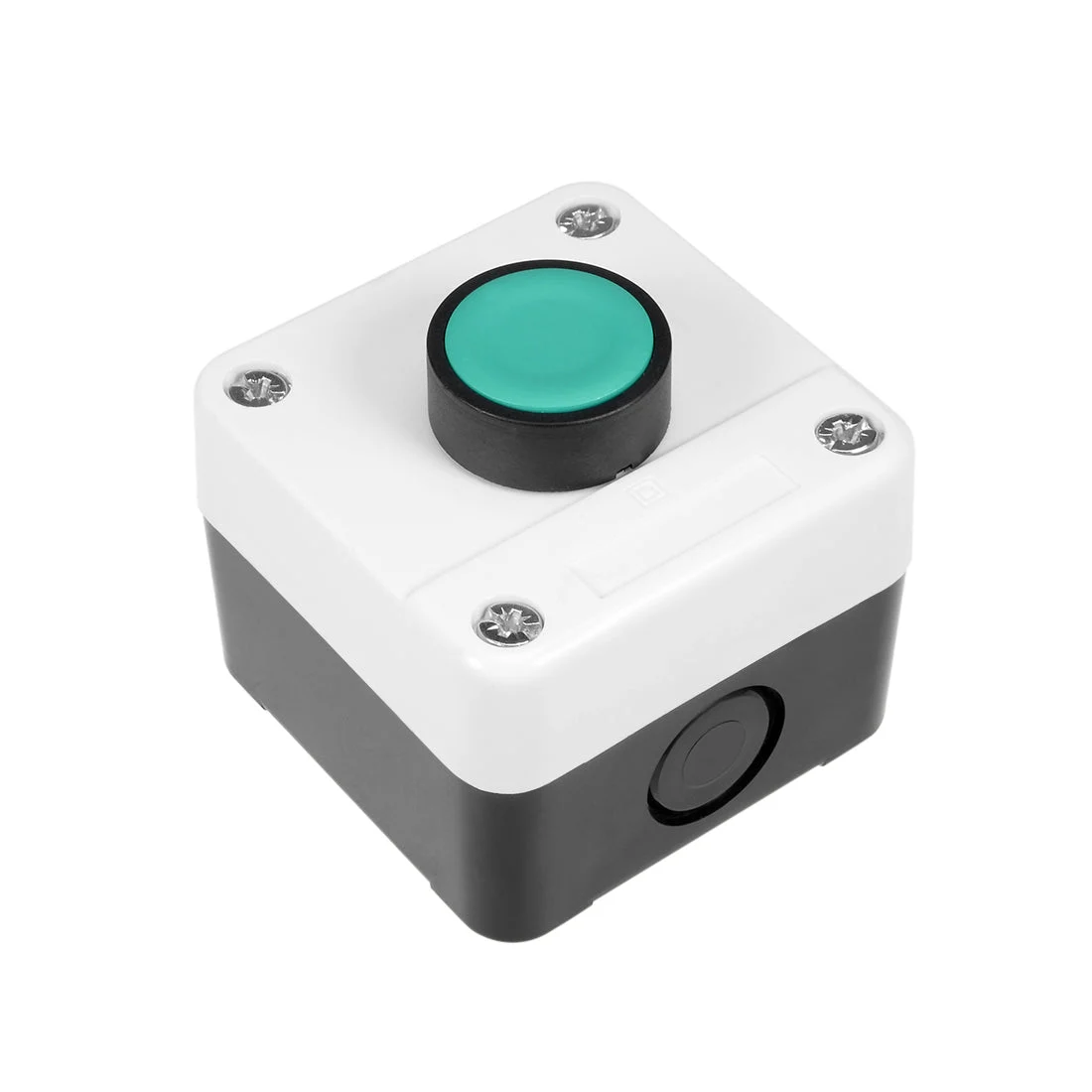

Push Button Switch Station Momentary NO Green, 380V 10(6)A

About this item

• Operation Type: Momentary; Terminals Quantity: 2;Ui: 380V; Ith: 10(6)A Contact Type: Green Push Button: 1NO
• Screw Hole Dia: 4mm / 0.16″; Button Diameter: 25mm / 0.98″
• Total Size (Approx.): 68 x 68 x 61mm / 2.68″ x 2.68″ x 2.4″ (L*W*H); Package Content: 1 x Push Button Switch Station;
• Can be widely used to control the electromagnetic , contactor, relay and other automatic control electric circuits.
• The push button switch station have one switch, a 1 NO momentary Green push button switch.

Specification:
Material: PC
Action Type: Momentary
Contact Type:
Green Push Button: 1 NO
Ith: 10(6)A; Ui: 380V
Screw Hole Dia: 4mm / 0.16inch
Button Diameter: 25mm / 0.98inch
Hole Distance(Center to Center): 54mm / 2.13-inch
Total Size (Approx.): 68 x 68 x 61m / 2.68-inch x 2.68-inch  x 2.40inch (L*W*T)
Package Content: 1 x Push Button Switch Station
Description:
The push button switch station have one switch, a 1 NO momentary Green push button switch.
Can be widely used to control the electromagnetic , contactor, relay and other automatic control electric circuits.
Comes with quick connect terminals to allow for fast connections.
