About this item
- Operation Type: Momentary; Terminals Quantity: 4; Ui: 380V; Ith: 10(6)A
- Screw Hole Dia: 4mm / 0.16″; (Rated); Button Diameter: 25mm / 0.98″;Light Working Voltage:220VAC;
- Total Size (Approx.): 134 x 68 x 61mm / 5.28″ x 2.68″ x 2.4″ (L*W*H);Package Content: 1 x Push Button Switch Station
- Can be widely used to control the electromagnetic, contactor, relay and other automatic control electric circuits.

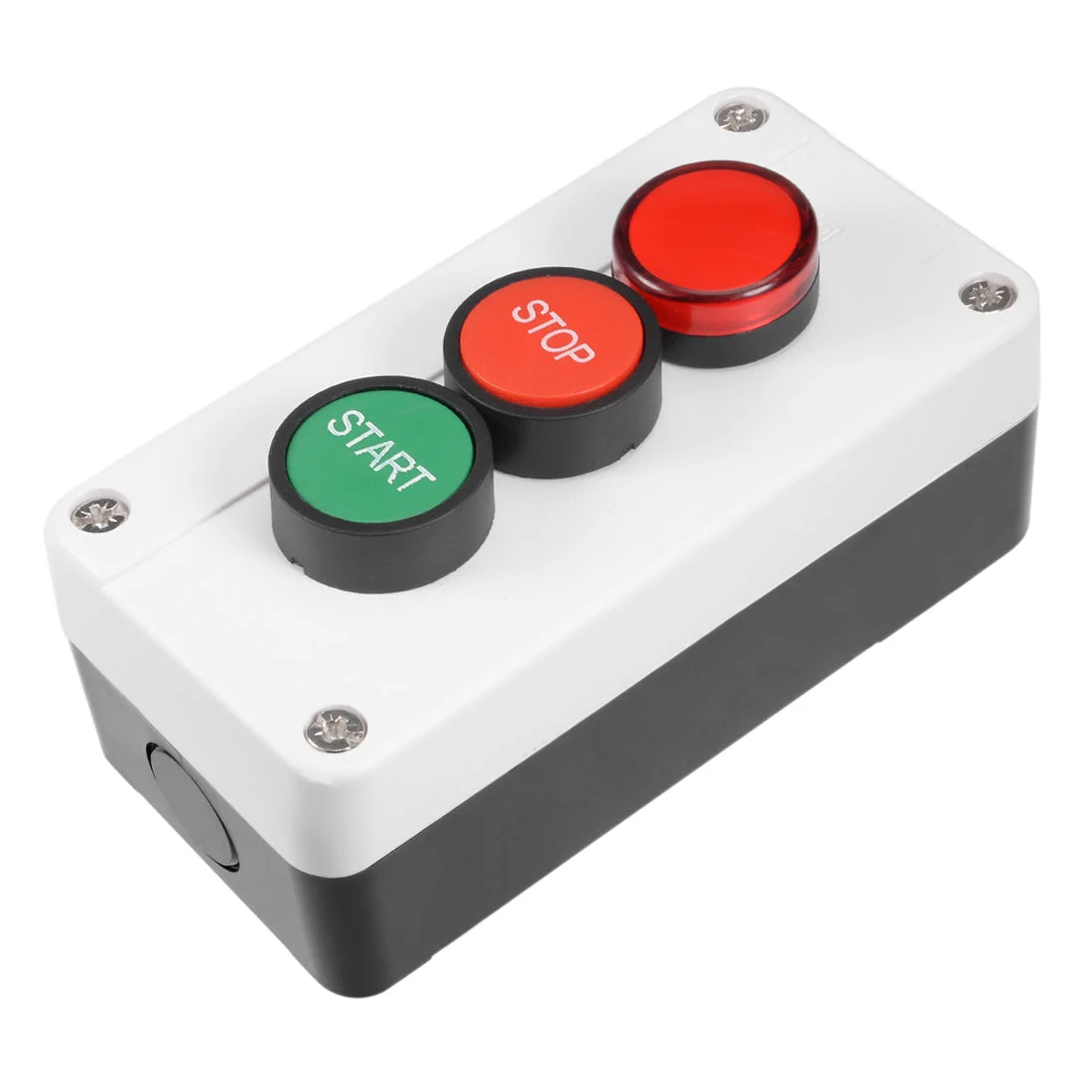

- The push button switch station consists of three switches, one is a 1 NC momentary red push button switch, one is a 1 NO momentary green push button switch and one is a signal light.
Specification:
Material: PC
Action Type: Momentary
Contact Type:
Red Push Button: 1 NC
Green Push Button: 1 NO
Red Button: Signal Light
Light Working Voltage:220VAC
Ith: 10(6)A; Ui: 380V
Screw Hole Dia: 4mm / 0.16inch
Button Diameter: 25mm / 0.98inch
Hole Distance(center to center): 98 x 54mm/ 3.86 x 2.13inch (L x W)
Total Size (Approx.): 133 x 67 x 61m / 5.2 x 2.6 x 2.4inch (L*W*T)
Package Content: 1 x Push Button Switch Station
Description:
The push button switch station consists of three switches, one is a 1 NC momentary red push button switch, one is a 1 NO momentary green push button switch and one is a signal light.
Can be widely used to control the electromagnetic , contactor, relay and other automatic control electric circuits.
Comes with quick connect terminals to allow for fast connections.
