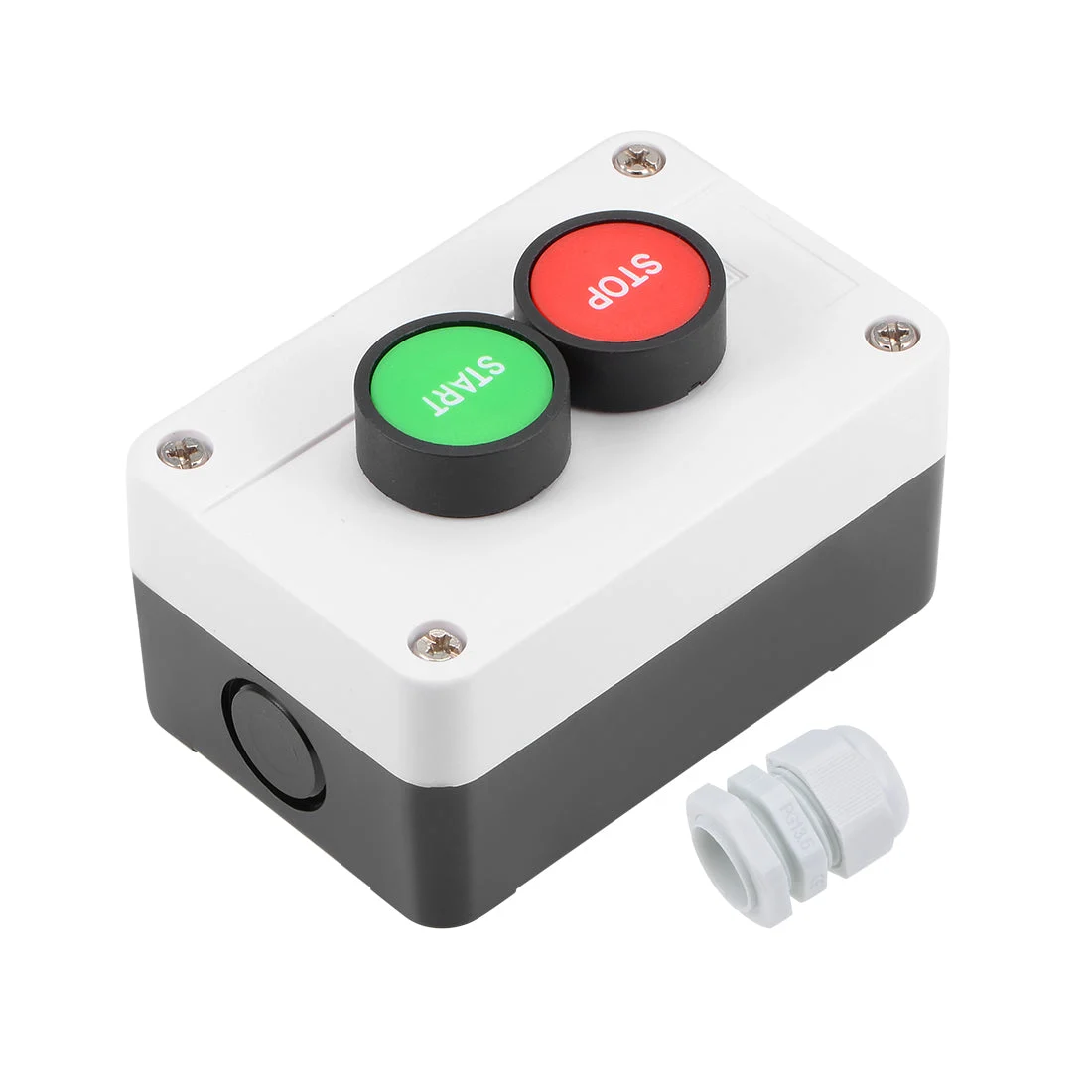

Push Button Switch Station Momentary NC Red, NO Green, 660V 10A

About this item

• Operation Type: Momentary; Terminals Quantity: 4; Ui: 660V; Ith: 10A
• Hole Distance(Center to Center) : 68 x 54mm/ 2.68 x 2.13″ (L x W); Total Size (Approx.): 105 x 68 x 61mm / 4.13″ x 2.68″ x 2.40″ (L*W*T)
• Comes with quick connect terminals to allow for fast connections.
• The push button switch station consists of two switches, one is a 1 NC momentary Red push button switch, one is a 1 NO momentary Green switch.
• Can be widely used to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.

Description:

The push button switch station consists of two switches, one is a 1 NC momentary Red push button switch, one is a 1 NO momentary Green push button switch.

Can be widely used to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.

Comes with quick connect terminals to allow for fast connections.

Specification:

Material: PC

Action Type: Momentary

Contact Type:

Red Push Button: 1NC

Green Push Button: 1 NO

Ith: 10A; Ui: 660V

Screw Hole Dia: 4mm / 0.16″

Button Diameter: 25mm / 0.98″

Hole Distance(Center to Center) : 68 x 54mm/ 2.68 x 2.13″ (L x W)

Total Size (Approx.): 105 x 68 x 61mm / 4.13″ x 2.68″ x 2.40″ (L*W*T)

Package Content:

1 x Push Button Switch Station, 1 x PG13.5 Cable Gland
