About this item
- Operation Type: Momentary; Ui: 415V; Ith: 10A; Button Color: Red, Green; Contact Type: NO NC
- Hole Distance(Center to Center) : 80 x 54mm/ 3.15 x 2.13″ (L x W); Total Size (Approx.): 110 x 72 x 78mm / 4.33″ x 2.83″ x 3.07″ (L*W*T)
- Comes with quick connect terminals to allow for fast connections.

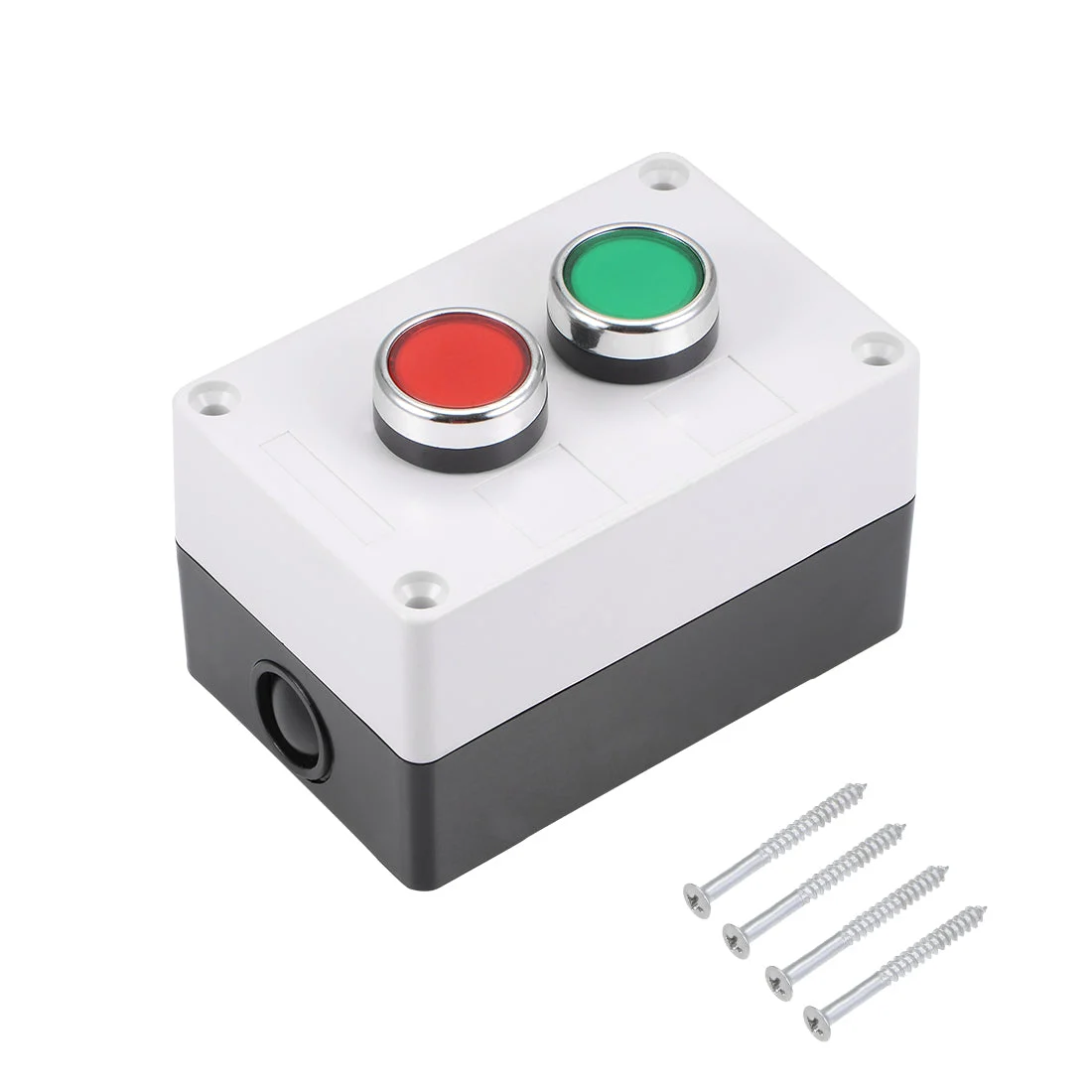

- The push button switch station consists of two switches, one is a momentary Red push button switch, one is a momentary Green push button switch.
- Can be widely used to control the electromagnetic , contactor, relay and other automatic control electric circuits.
Description:
The push button switch station consists of two switches, one is a momentary Red push button switch, one is a momentary Green push button switch.
Can be widely used to control the electromagnetic , contactor, relay and other automatic control electric circuits.
Comes with quick-connect terminals to allow for fast connections.
Specification:
Material: PC
Action Type: Momentary
Button Color: Red, Green
Contact Type: NO NC
Ith: 10A; Ui: 415V
Screw Hole Dia: 4mm / 0.16″
Button Diameter: 29mm / 1.14″
Button Hole Size: 22mm/ 0.86″
Outlet Hole Diameter: 20mm/ 0.79″
Hole Distance(Center to Center) : 80 x 54mm/ 3.15 x 2.13″ (L x W)
Total Size (Approx.): 110 x 72 x 78mm / 4.33″ x 2.83″ x 3.07″ (L*W*T)
Package Content:
1 x Push Button Switch Station
