About this item
- Operation Type: Latching; Ui: 415V; Ith: 10A; Screw Hole Dia: 4mm / 0.16″
- Hole Distance(center to center): 54 x 49mm/ 2.13″ x 1.93″ (L*W); Total Size (Approx.): 78 x 72 x 100m / 3.07 x 2.83 x 3.94″ (L*W*T)
- Comes with quick connect terminals to allow for fast connections.

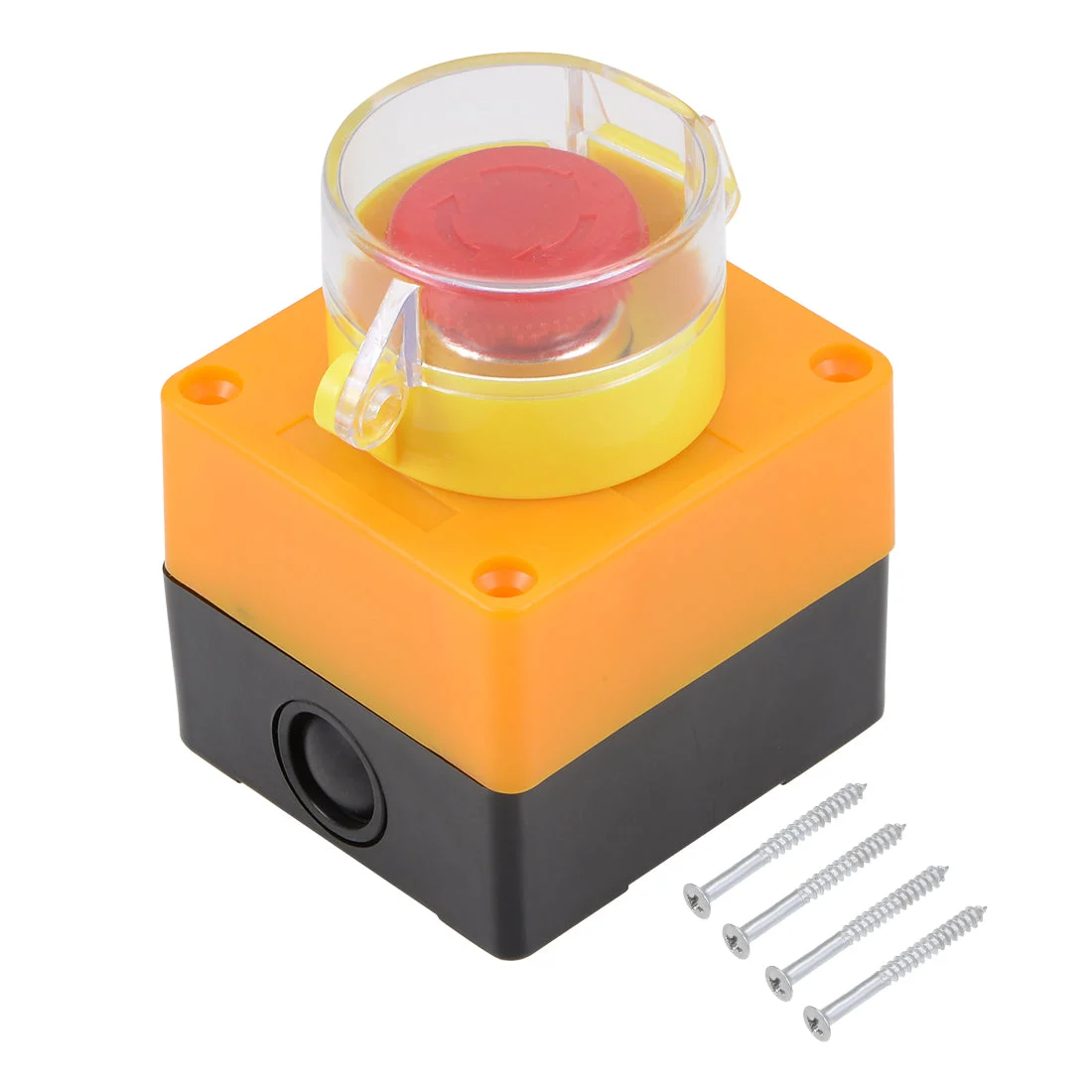

- The push button switch station have one switch, a NO NC momentary mushroom emergency stop switch, with protective cover, yellow and black case.
- Can be widely used to control the electromagnetic , contactor, relay and other automatic control electric circuits.
Description:
The push button switch station have one switch, a NO NC momentary mushroom emergency stop switch, with protective cover, yellow and black case.
Can be widely used to control the electromagnetic , contactor, relay and other automatic control electric circuits.
Comes with quick connect terminals to allow for fast connections.
Specification:
Material: PC
Action Type: Latching
Contact Type: NO NC
Button Color: Red
Ith: 10A; Ui: 415V
Screw Hole Dia: 4mm / 0.16″
Button Hole Size: 22mm/ 0.86″
Outlet Hole Diameter: 20mm/ 0.79″
Protective Cover Dia: 54.5mm / 2.15″
Hole Distance(center to center): 54 x 49mm/ 2.13″ x 1.93″ (L*W)
Total Size (Approx.): 78 x 72 x 100m / 3.07 x 2.83 x 3.94″ (L*W*T)
Package Content:
1 x Push Button Switch Station
