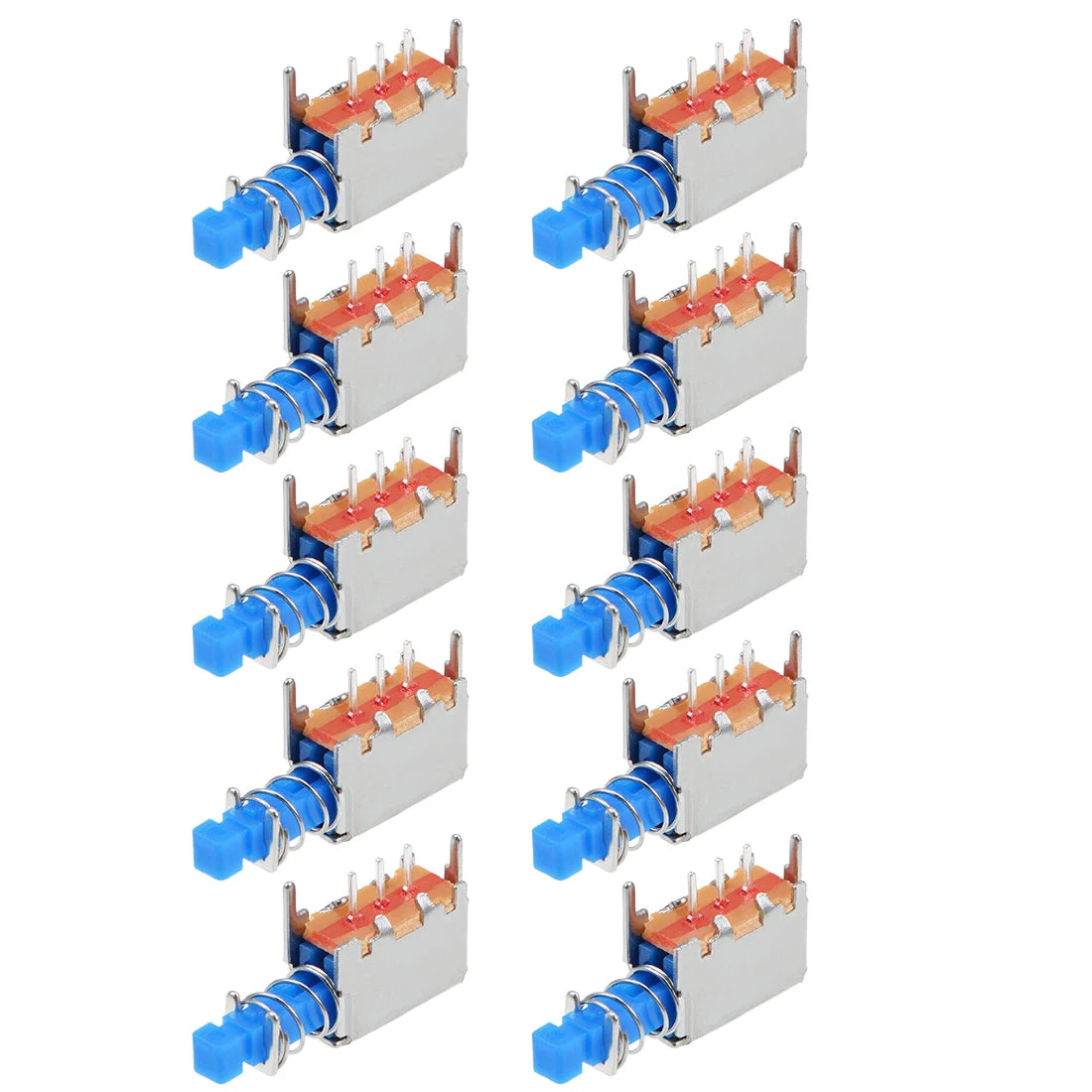

Push Button Switch SPST 3 Pin 1 Position Self-Locking Blue 10pcs

About this item

• [Standard] – SPST 3 Pins 2mm Pitch 1 Position
• [Latching Switch] – Self locking straight through hole miniature switch
• [Features] – Mechanism design offers acute operation and long service life
• [Applications] – Ideal for mounting on PCB motherboard of many electric appliances
• [Package Content] – 10pcs x Push Button Switch

Specifications:

Material: Plastic, Metal

Switch Operation: Latching

Contact Configuration: SPST

Terminal Type: Straight Through Hole

Pin Quantity: 3

Each Pin Pitch: 2mm

Position Quantity: 1

Mounting Pillar Distance: 12mm / 0.47-inch

Cap Mounting Part: 4 x 2.8mm / 0.16-inch x 0.11-inch(L*W)

Overall Size: 22 x 11 x 5mm / 0.87-inch x 0.43-inch x 0.20-inch(L*W*H)

Package Contents:

10pcs x Push Button Switch

Description:

Latching contact, 3 pins, DIP through hole mounting.

Used in the fields of electronic products, household appliances and more.

High precision mechanism design offers acute operation and long service life.
