About this item
- Operation Type: Momentary; Ith: 10A; Ui: 415V; Button Color: Red, Green, Yellow
- Hole Distance(center to center): 115 x 54mm/ 4.53″ x 2.13″ (L*W); Total Size (Approx.): 150 x 71 x 77mm / 5.91 x 2.8 x 3.03″ (L*W*T)
- Comes with quick connect terminals to allow for fast connections.

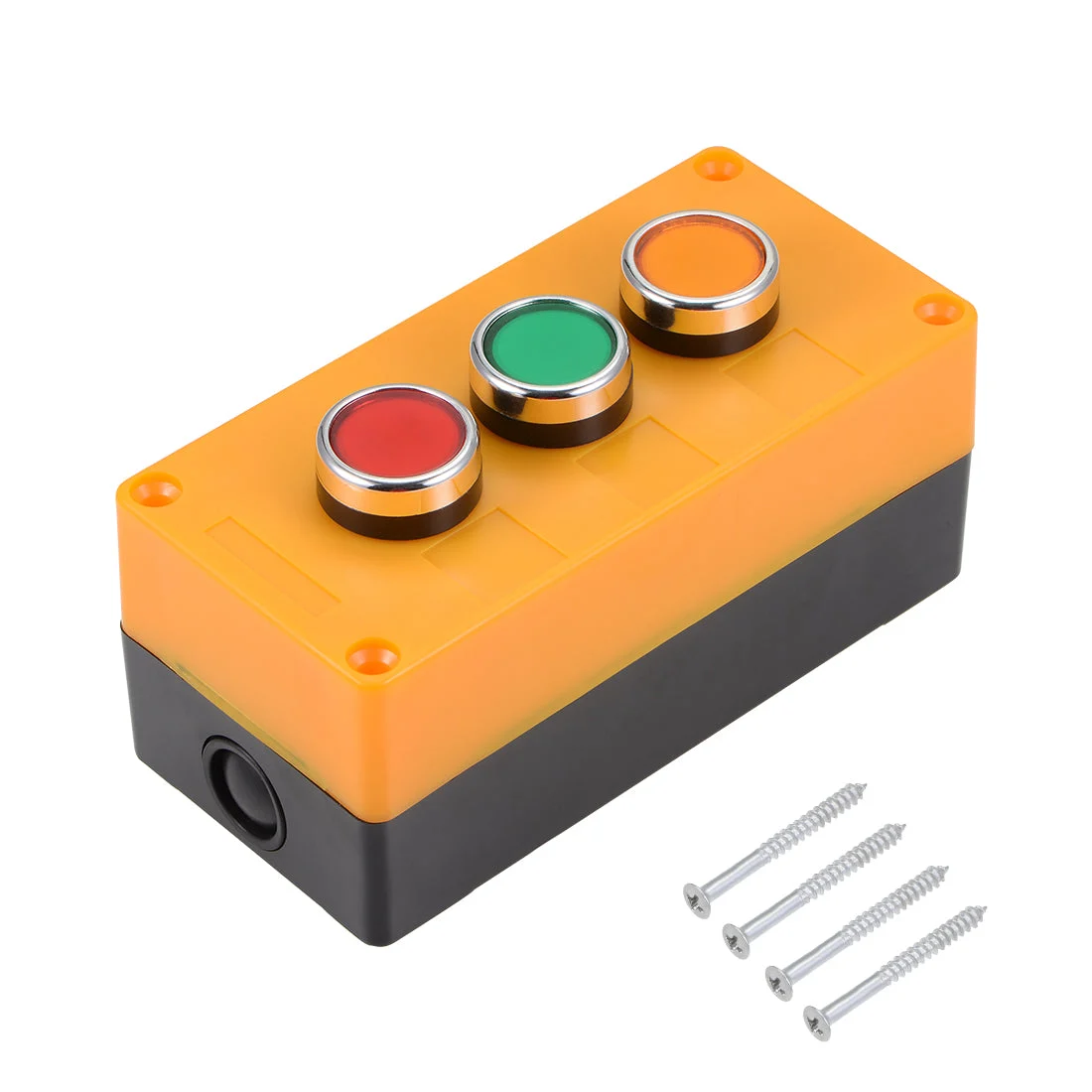

- The push button switch station consists of three switches, one is a momentary red push button switch, one is a momentary green switch and a momentary yellow switch.
- Can be widely used to control the electromagnetic , contactor, relay and other automatic control electric circuits.
Description:
The push button switch station consists of three switches, one is a momentary red push button switch, one is a momentary green switch and a momentary yellow switch.
Can be widely used to control the electromagnetic, contactor, relay and other automatic control electric circuits.
Comes with quick connect terminals to allow for fast connections.
Specification:
Material: PC
Action Type: Momentary
Contact Type: NO NC
Button Color: Red, Green, Yellow
Ith: 10A; Ui: 415V
Screw Hole Dia: 4mm / 0.16″
Button Hole Size: 22mm/ 0.86″
Outlet Hole Diameter: 20mm/ 0.79″
Hole Distance(center to center): 115 x 54mm/ 4.53″ x 2.13″ (L*W)
Total Size (Approx.): 150 x 71 x 77mm / 5.91 x 2.8 x 3.03″ (L*W*T)
Package Content:
1 x Push Button Switch Station
