About this item
- Operation Type: Momentary; Ith: 10A; Ui: 415V; Button Color: Red, Green, Yellow
- Hole Distance(center to center): 115 x 54mm/ 4.53″ x 2.13″ (L*W); Total Size (Approx.): 150 x 71 x 78mm / 5.91 x 2.8 x 3.07″ (L*W*T)
- Comes with quick connect terminals to allow for fast connections.

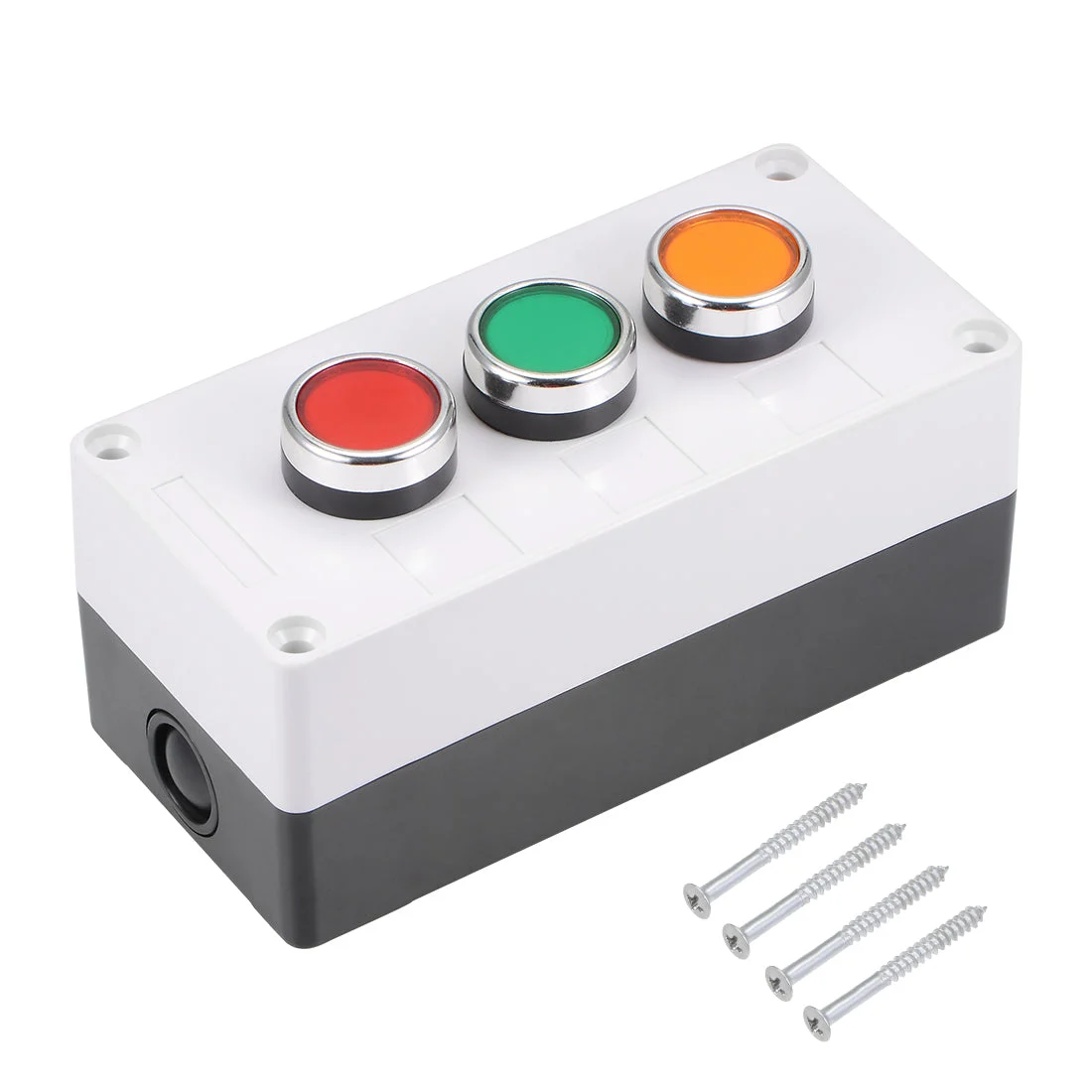

- The push button switch station consists of three switches, one is a momentary red push button switch, one is a momentary green switch and a momentary yellow switch.
- Can be widely used to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.
Description:
The push button switch station consists of three switches, one is a momentary red push button switch, one is a momentary green switch and a momentary yellow switch.
Can be widely used to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.
Comes with quick connect terminals to allow for fast connections.
Specification:
Material: PC
Action Type: Momentary
Contact Type: NO NC
Button Color: Red, Green, Yellow
Ith: 10A; Ui: 415V
Screw Hole Dia: 4mm / 0.16″
Button Hole Size: 22mm/ 0.86″
Outlet Hole Diameter: 20mm/ 0.79″
Hole Distance(center to center): 115 x 54mm/ 4.53″ x 2.13″ (L*W)
Total Size (Approx.): 150 x 71 x 78mm / 5.91 x 2.8 x 3.07″ (L*W*T)
Package Content:
1 x Push Button Switch Station
